Custom Bottle Boxes in USA
Custom bottle boxes are printed cartons built to hold, protect, and present bottles in retail, ecommerce, and direct-to-consumer settings. The box does two things well. It keeps the bottle from moving in transit, which matters especially for glass, and it gives the brand a flat, printable surface for the product name, ingredient list, usage instructions, and compliance text. Most bottle products cannot carry all of that information on the bottle label alone. The box carries the rest. EcoFold prints custom bottle packaging to your exact dimensions, starting at 100 units with 8 to 10 business day turnaround and no die or plate charges. The box style, board weight, and window placement are all selected based on your bottle size, closure type, and where the box ends up.What a Bottle Box Is Actually Built to Do
A bottle box is not just a carton with a hollow inside. The interior dimensions need to match the bottle closely enough that there is no movement during transit, but with enough clearance that the bottle can be inserted and removed cleanly. A box that is too tight damages the label. A box with too much play causes the bottle to knock against the walls during shipping. For glass, that knocking is how breakage happens. Board weight matters more for bottle boxes than most buyers expect. A 14pt SBS carton is fine for lightweight plastic bottles. For glass dropper bottles, 16pt or 18pt holds shape better under load and gives the walls more compression resistance when stacked in a shipping carton. For sets with multiple glass bottles grouped together, custom packaging inserts cut from cardboard or molded paper pulp keep each bottle separated so they cannot contact each other. The other thing the box handles is the print space the bottle cannot. A 1oz essential oil bottle has roughly two square inches of usable label area. The carton around it has six printable panels. That is where the ingredient list, the batch number, warning text, the brand story, and any QR code go.Box Styles for Different Bottle Types
The right style depends on the bottle shape, the closure type, and whether the box is going into a retail fixture or a shipment.| Bottle Type | Common Box Style | Notes |

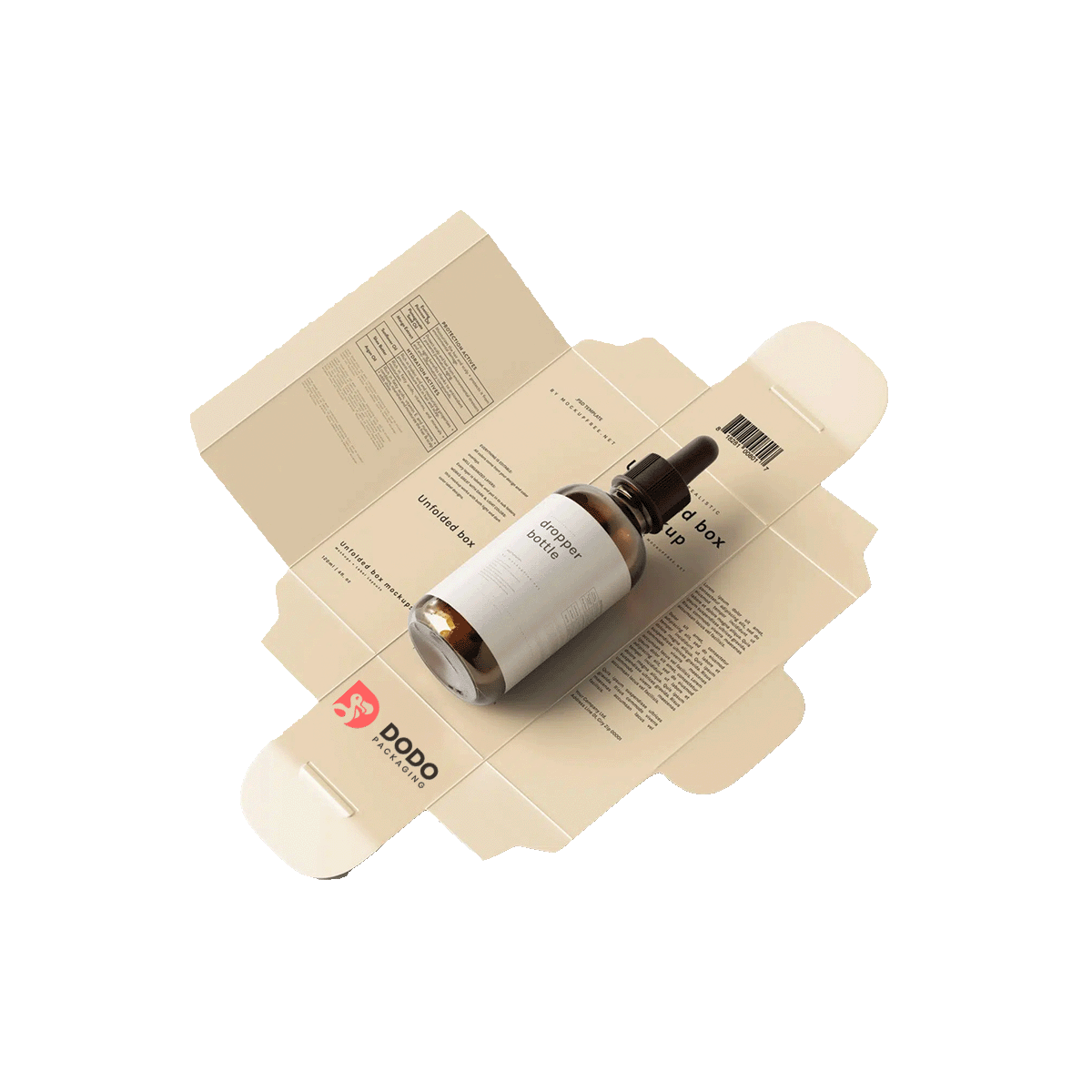

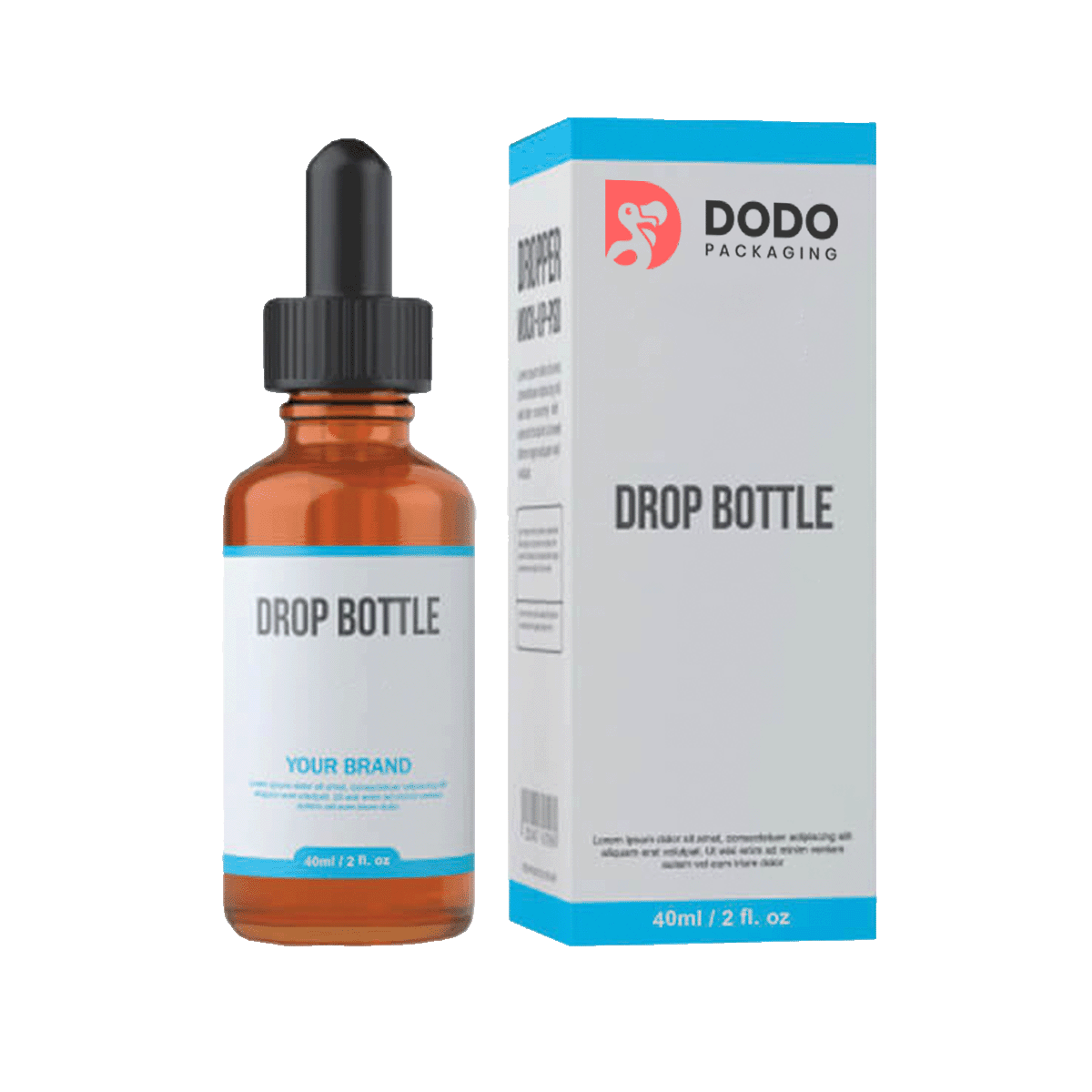

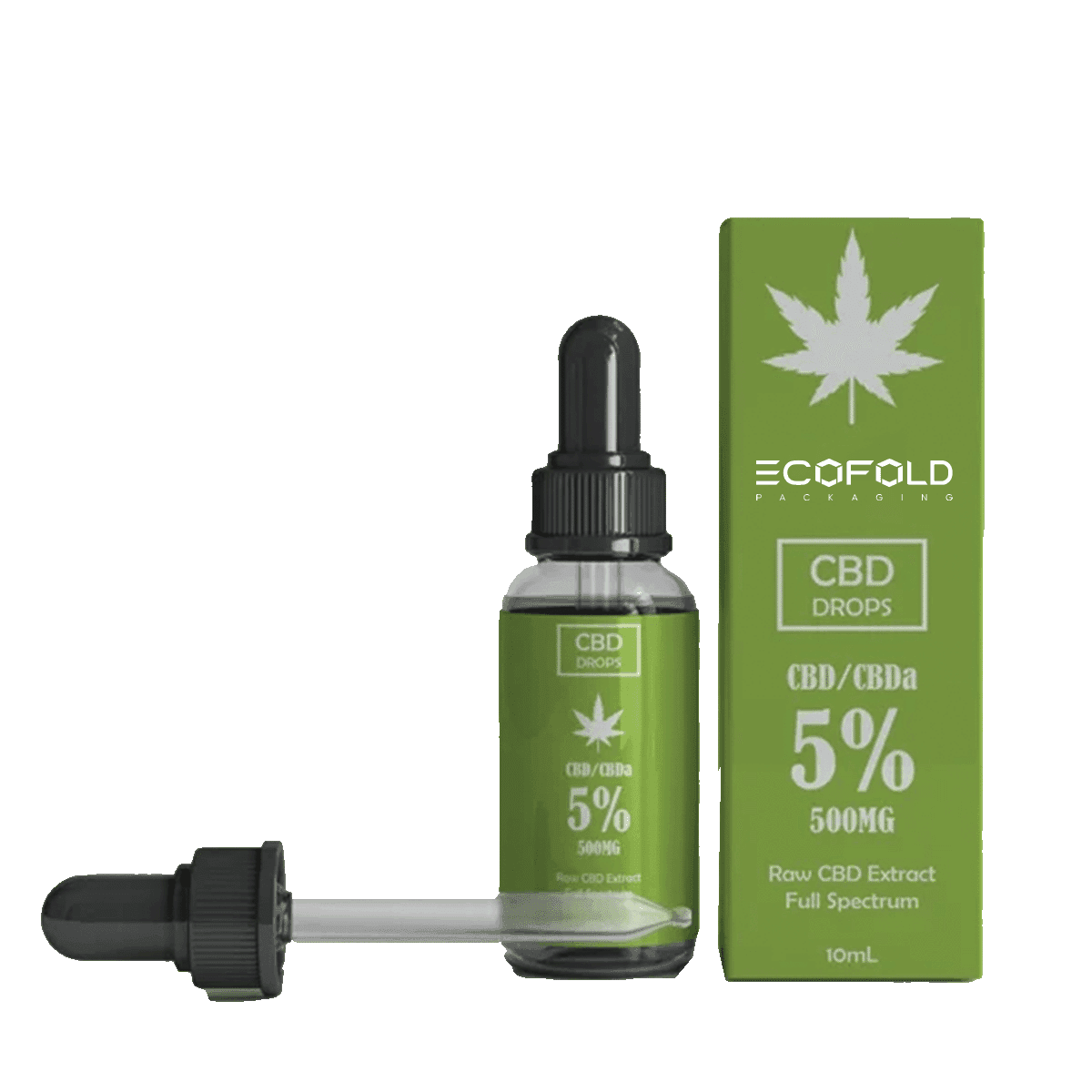

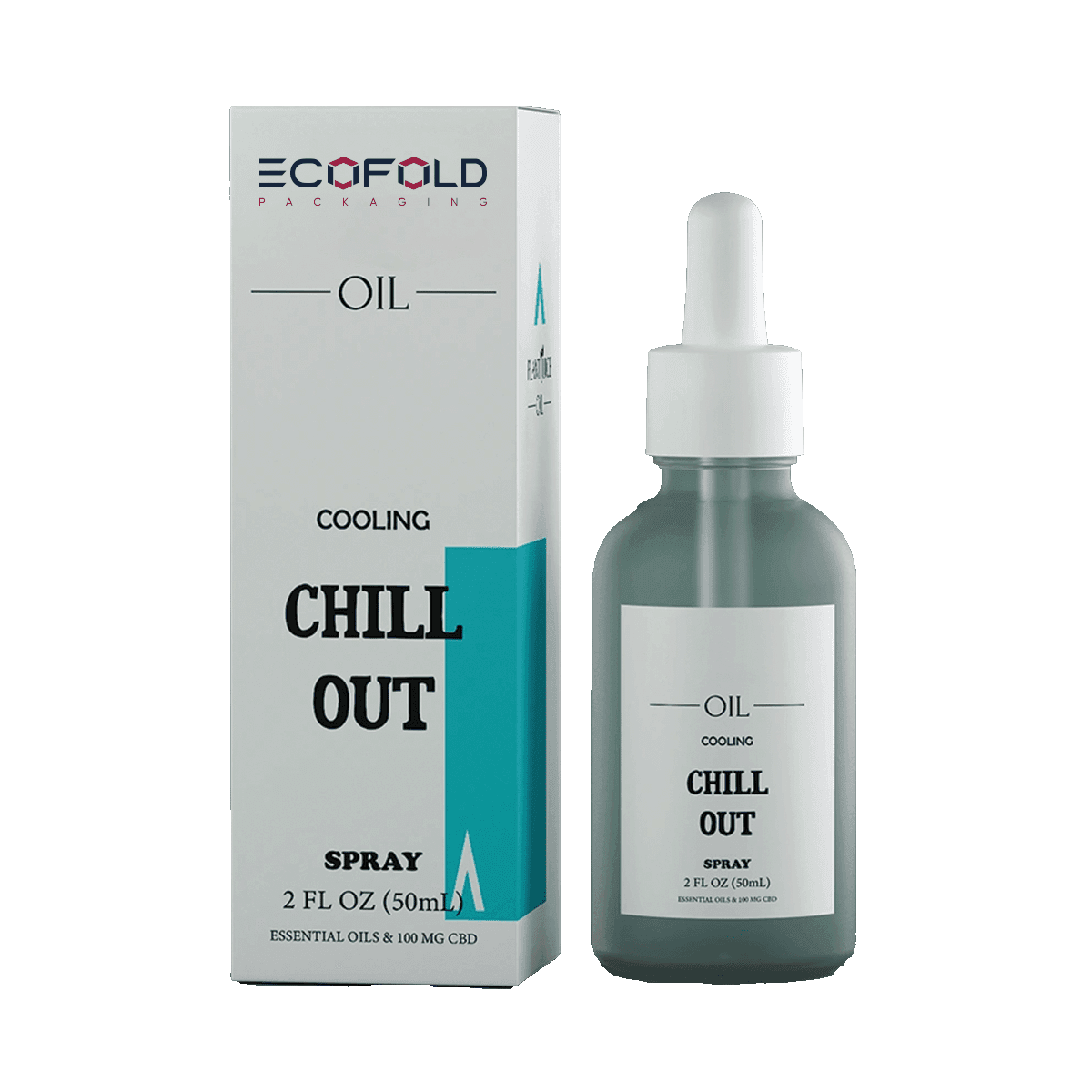

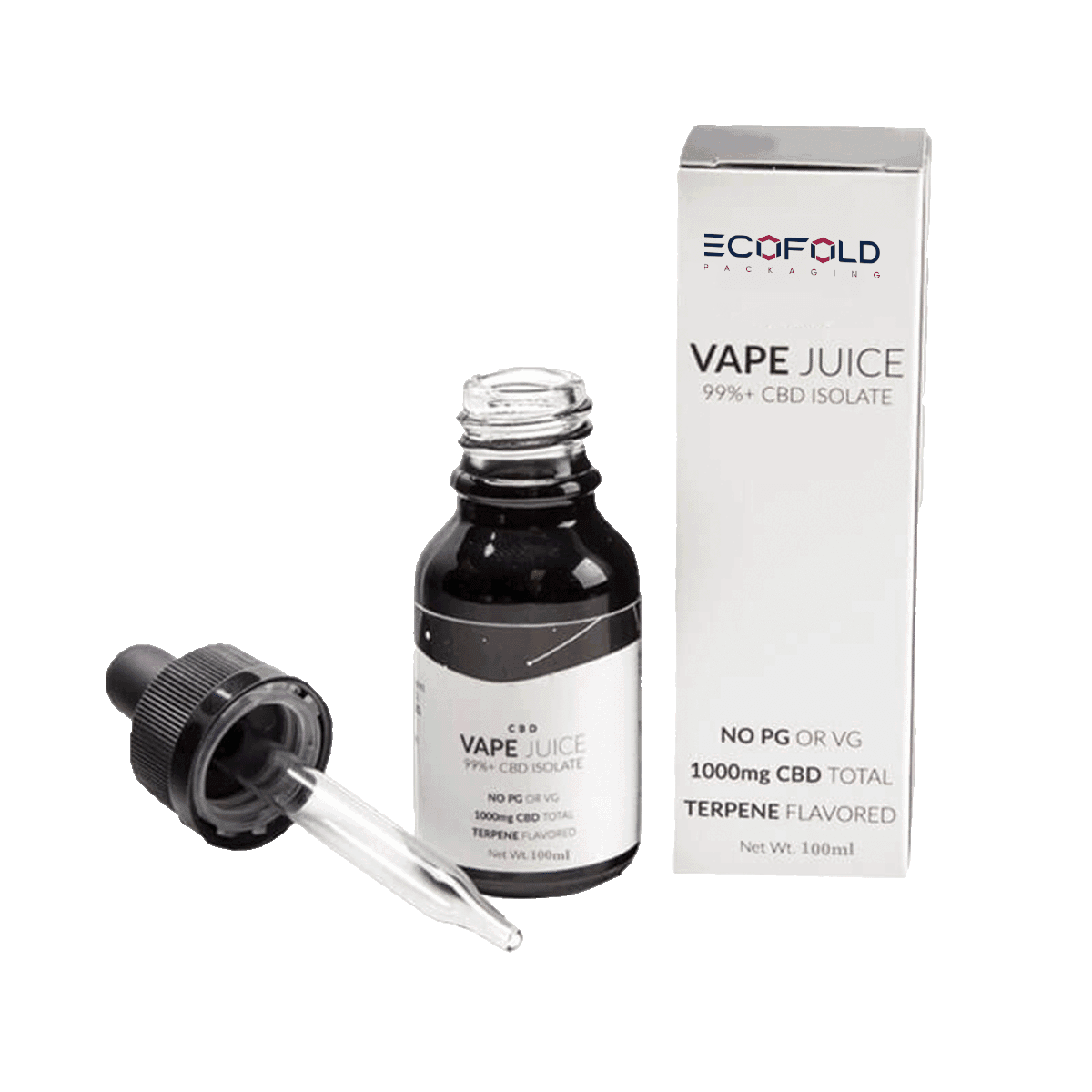

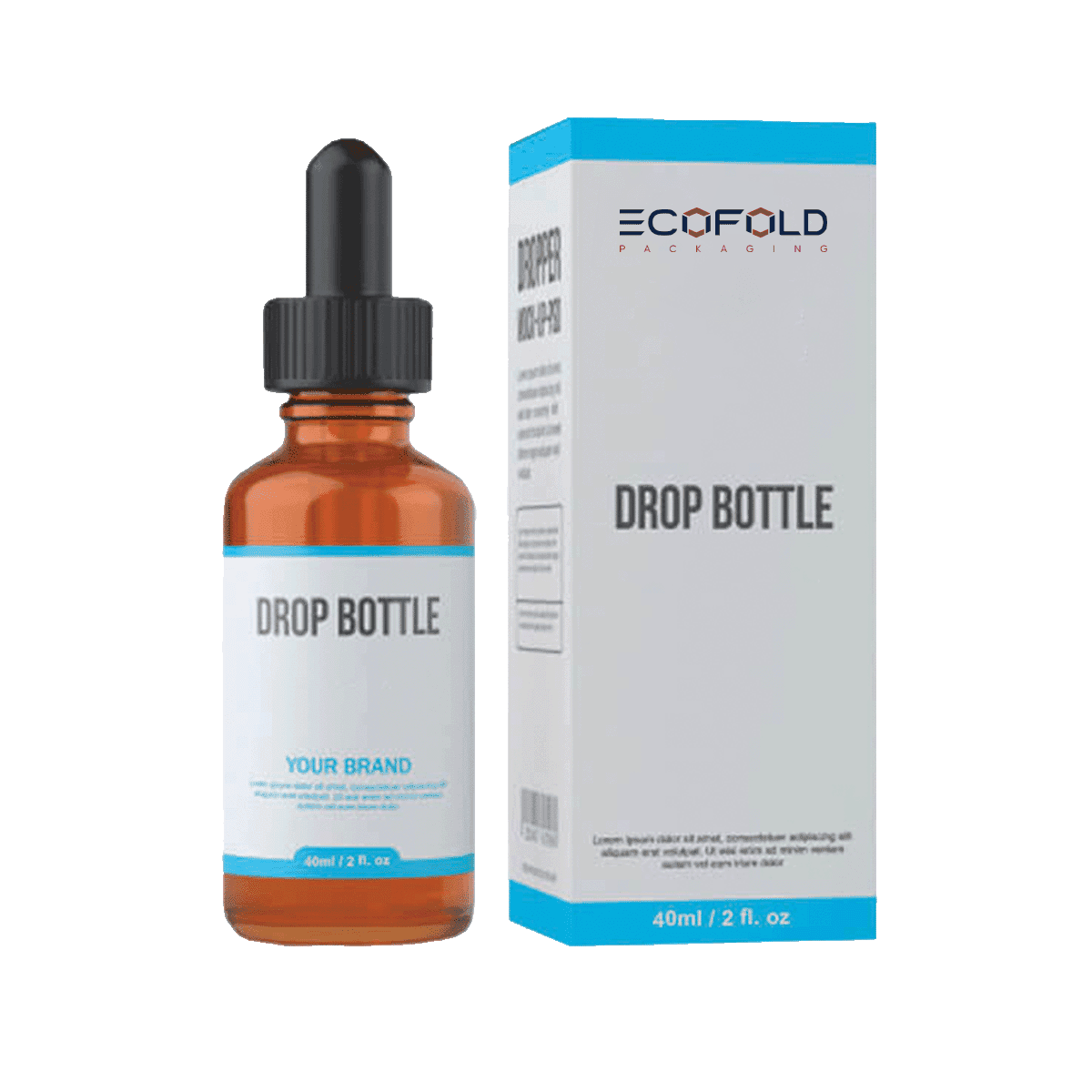

| Dropper bottle (oils, tinctures, beard oil) | Straight tuck end carton | Standard fit for slim 5ml to 100ml dropper bottles, all six panels print flat |

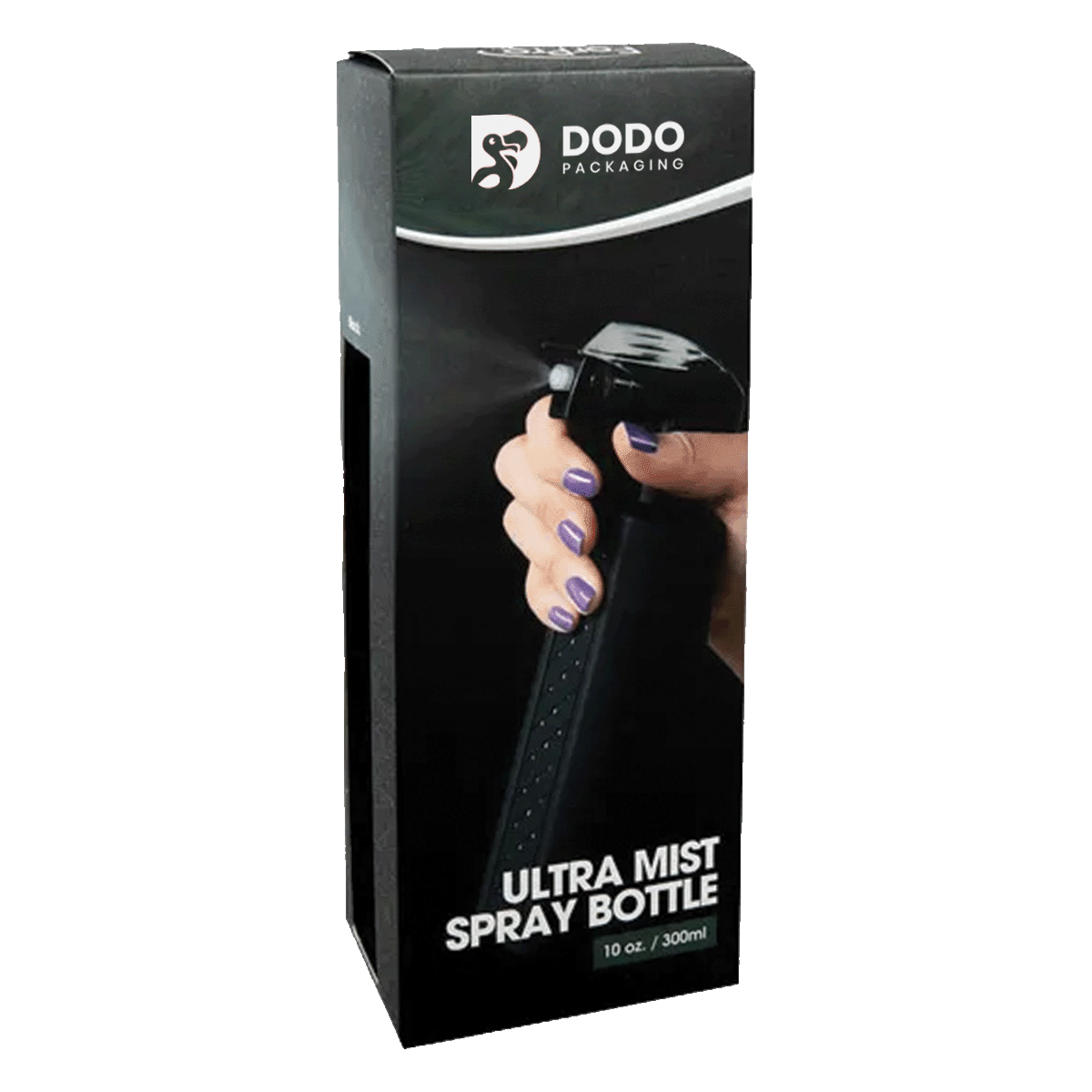

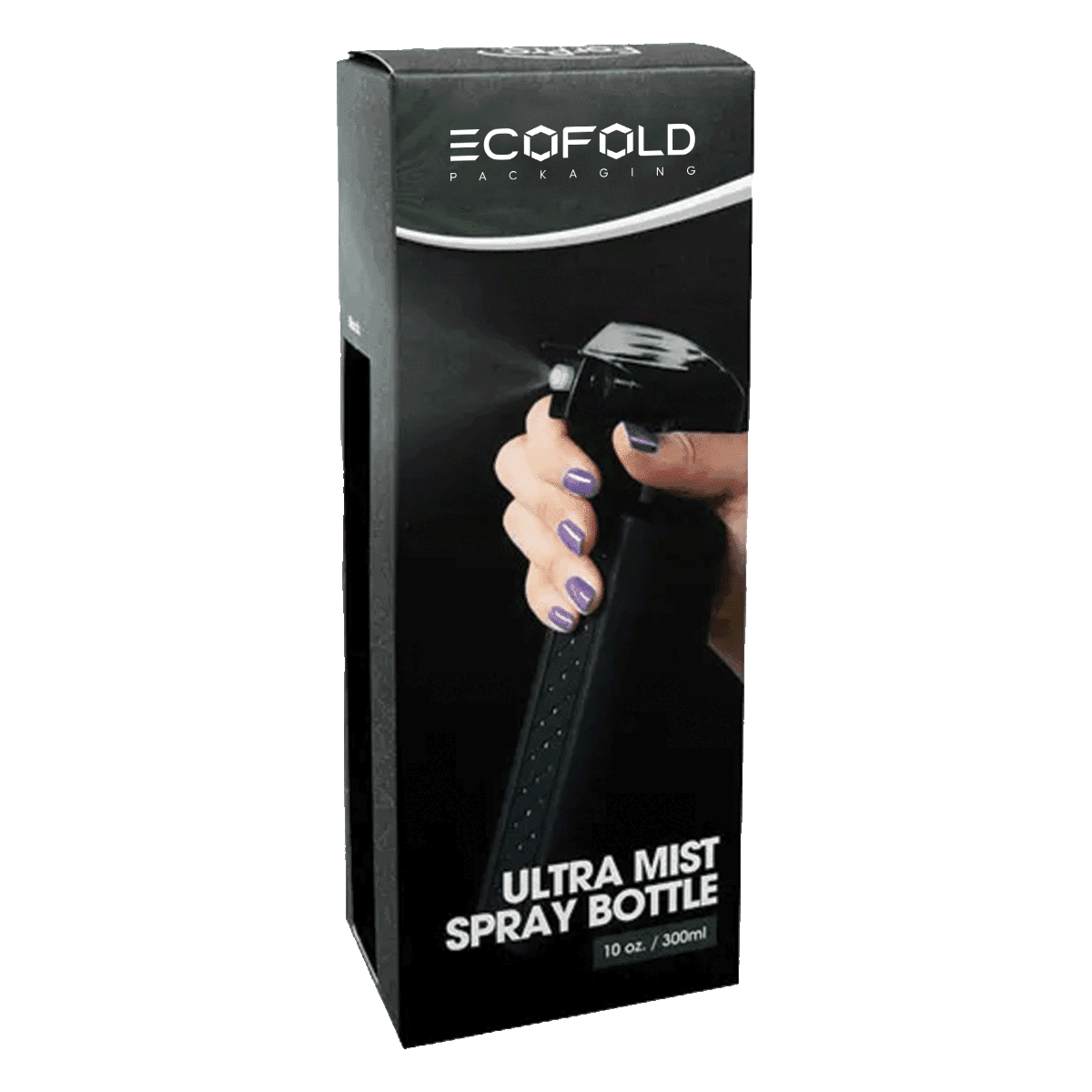

| Spray bottle (mists, serums, haircare) | Reverse tuck end carton | Slightly wider base accommodates spray bottle shoulder profile |
| Pump bottle (lotion, shampoo, body oil) | Auto-lock bottom carton | Auto-lock base holds the weight of a full pump bottle without the bottom opening |

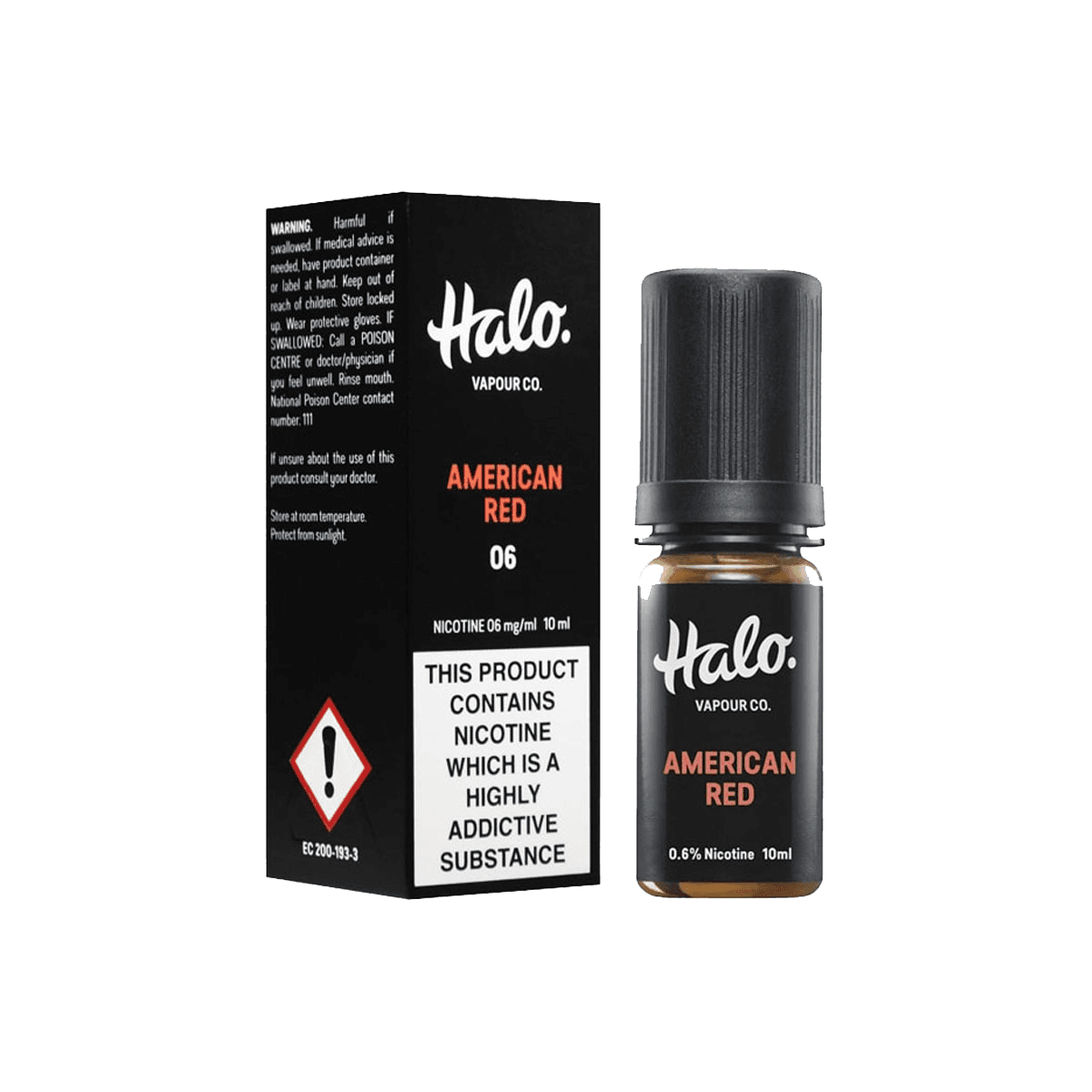

| Vape and e-liquid bottles | Straight tuck end, child-resistant insert option | Requires regulatory labeling panels on all sides including nicotine and batch text |

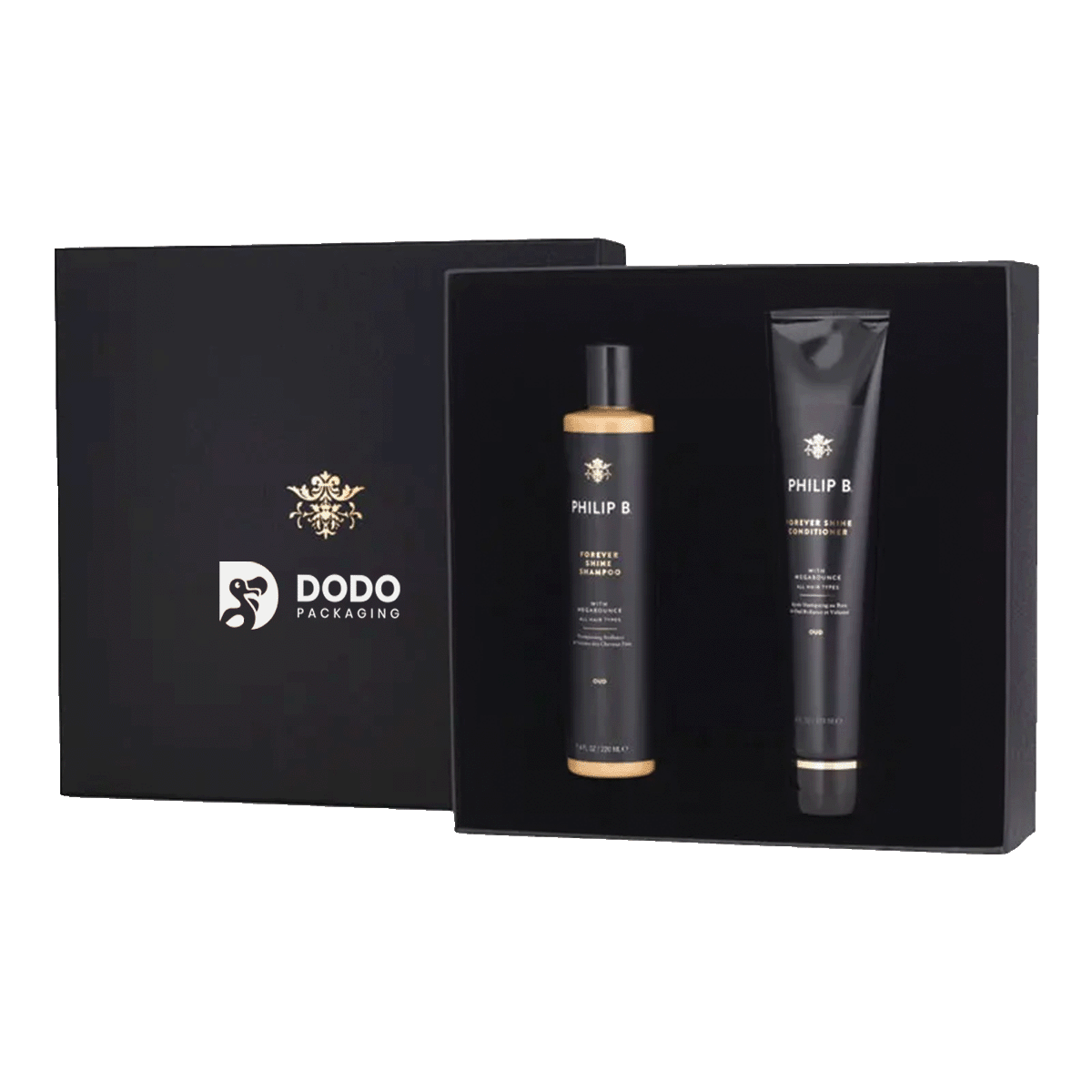

| Multi-bottle set (two to six bottles) | Custom tray and sleeve | Holds each bottle separately, sleeve carries the full brand print |
| Counter retail display | Counter display tray with header panel | Pre-filled tray holds multiple single-bottle cartons for countertop placement |
Getting the Box Dimensions Right

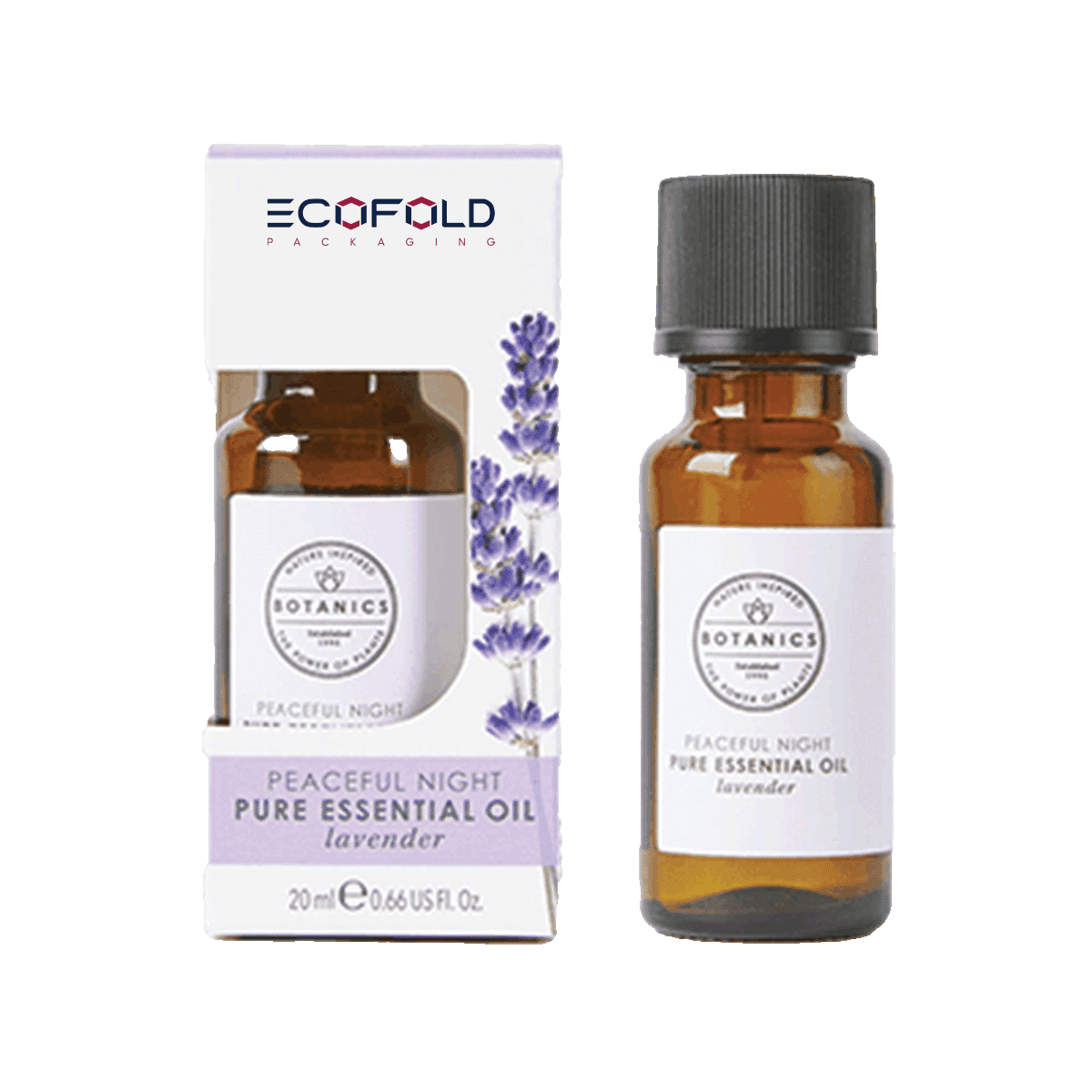

This is where bottle boxes go wrong most often. The box height needs to account for the full bottle measurement from the base to the very top of the cap, dropper tip, spray nozzle, or flip closure, whichever extends highest. Not just the bottle body. A 4-inch glass bottle with a 1-inch dropper pipette needs a box that clears 5 inches, plus a few extra millimeters for smooth insertion and removal. Round bottles add a separate problem. A cylindrical bottle in a square carton has four corner gaps where the bottle can shift. For slim dropper bottles under 1 inch in diameter, a well-sized tuck-end carton usually handles this. For wider round bottles, a cardboard insert or a paper pulp molded tray holds the bottle centered so it cannot move laterally inside the box. For frosted, opaque, or dark-tinted bottles where the product color is part of the brand, a die-cut window on the front panel of the carton lets buyers see the product before buying. That is a useful feature for essential oil lines and serums where product clarity or color is a buying signal.Materials for Bottle Packaging Boxes
Board choice depends on the bottle weight, the closure type, and the retail or shipping environment the box will go through.- 14pt to 16pt SBS cardstock for lightweight plastic bottles and retail cartons that need full CMYK or Pantone print on a clean white surface.
- 18pt to 24pt SBS for heavier glass bottles where the thicker wall provides more compression resistance when stacked.

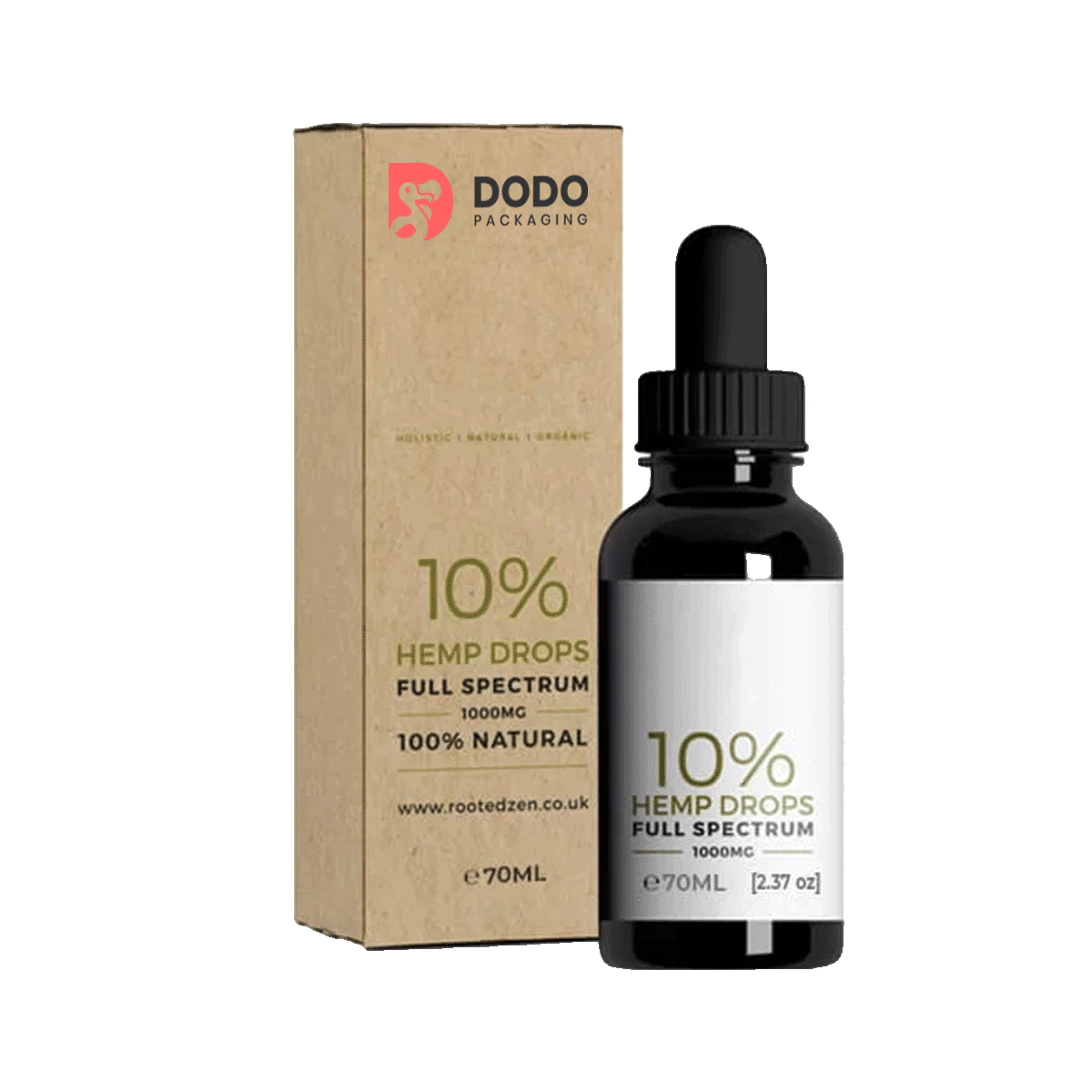

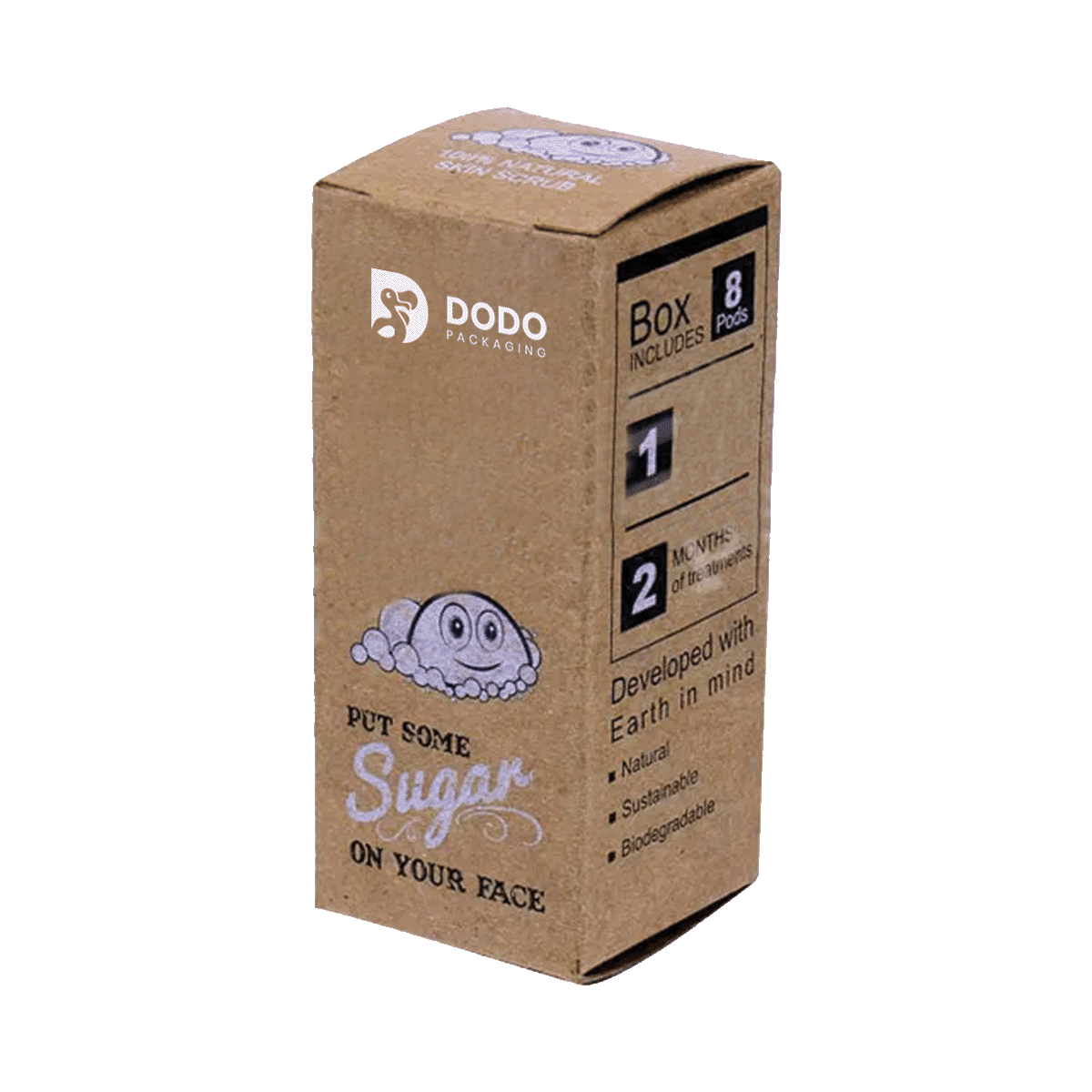

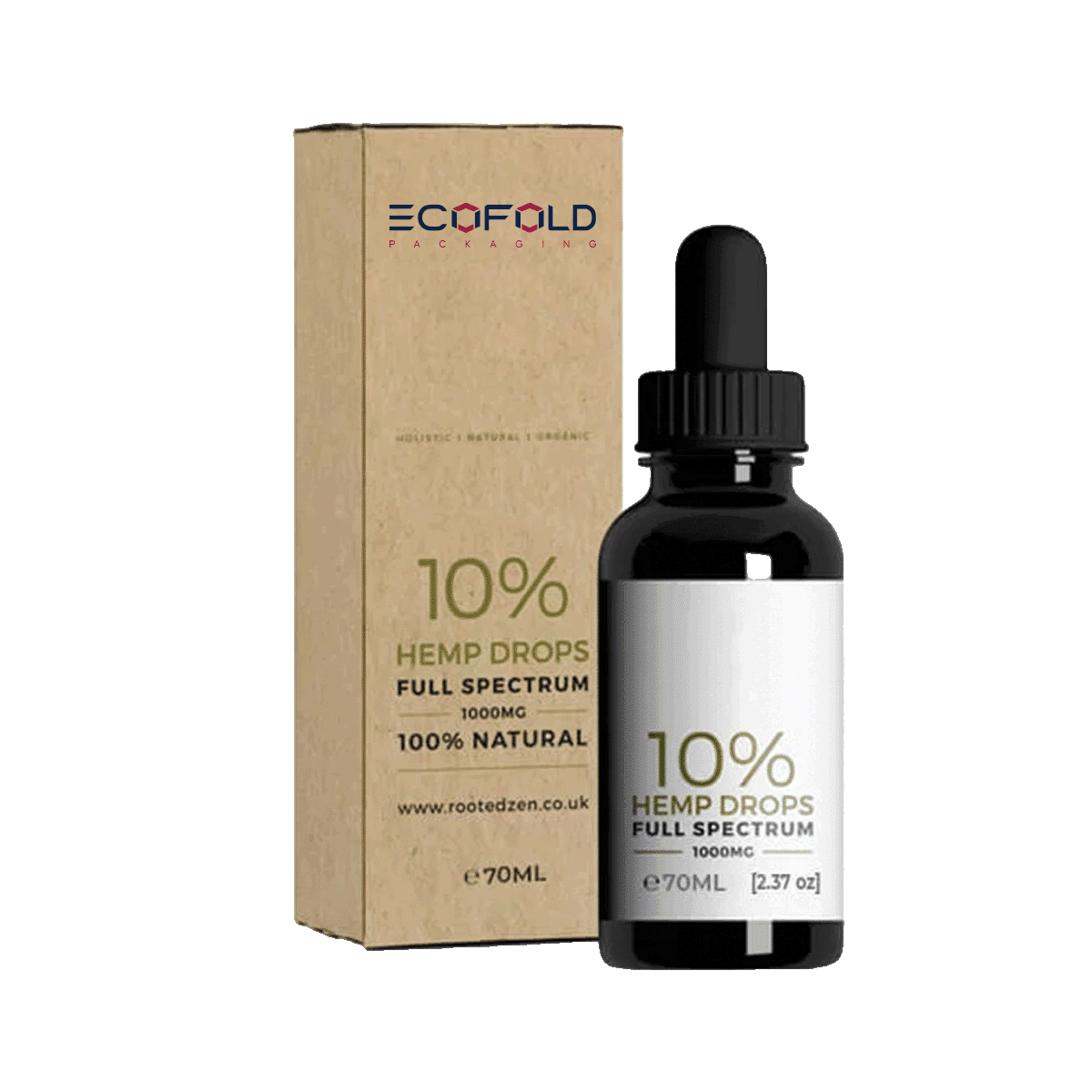

- Kraft paper for natural and eco-positioned bottle brands in essential oils, CBD, and wellness categories.
- E-flute corrugated for outer shipping cartons that protect multiple single-bottle boxes in a bulk shipment.
- FSC-certified and recycled board for brands marketing sustainable packaging alongside their bottle products.
Printing and Branding Options
Offset CMYK is the right choice for custom printed bottle boxes in runs of 500 and above. Gradients, Pantone colors, and photography all reproduce cleanly on SBS at that volume. Digital print works better for shorter runs and new product launches where the brand wants to validate packaging before committing to a full production volume. Bottle boxes with logo orders almost always need more than just the front panel planned. Regulations for personal care products, e-liquids, and CBD tinctures require specific text in minimum font sizes on defined panels. Build the panel hierarchy into the dieline before artwork starts, not after. That one step saves a reprint. Bottle products made for shelves can also be paired with custom retail packaging for a cleaner brand presentation in retail settings. Common finish options include matte lamination for a clean, professional look across wellness and skincare bottle cartons, gloss lamination for food-adjacent and supplement brands, soft-touch for beauty lines at a higher price point, and spot UV on the logo panel for a contrast finish without adding foil cost.Who Orders Custom Bottle Boxes?

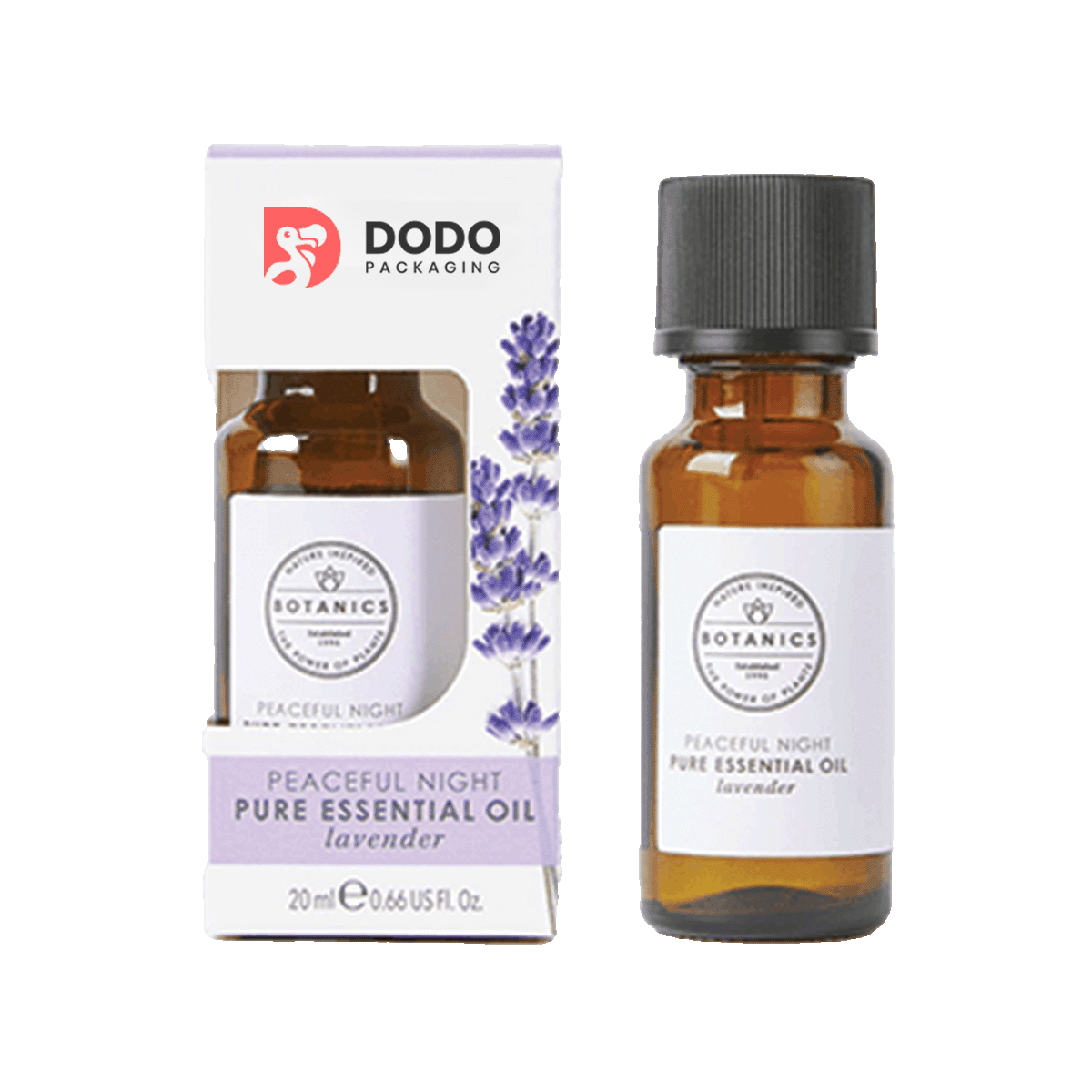

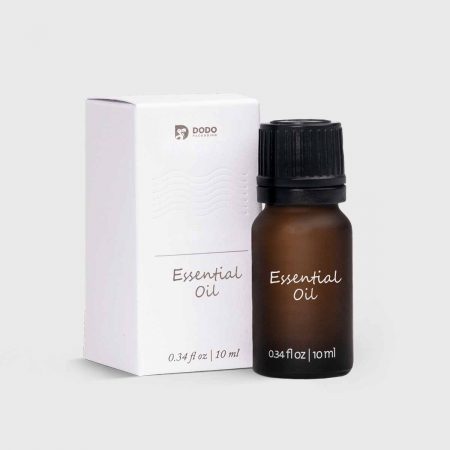

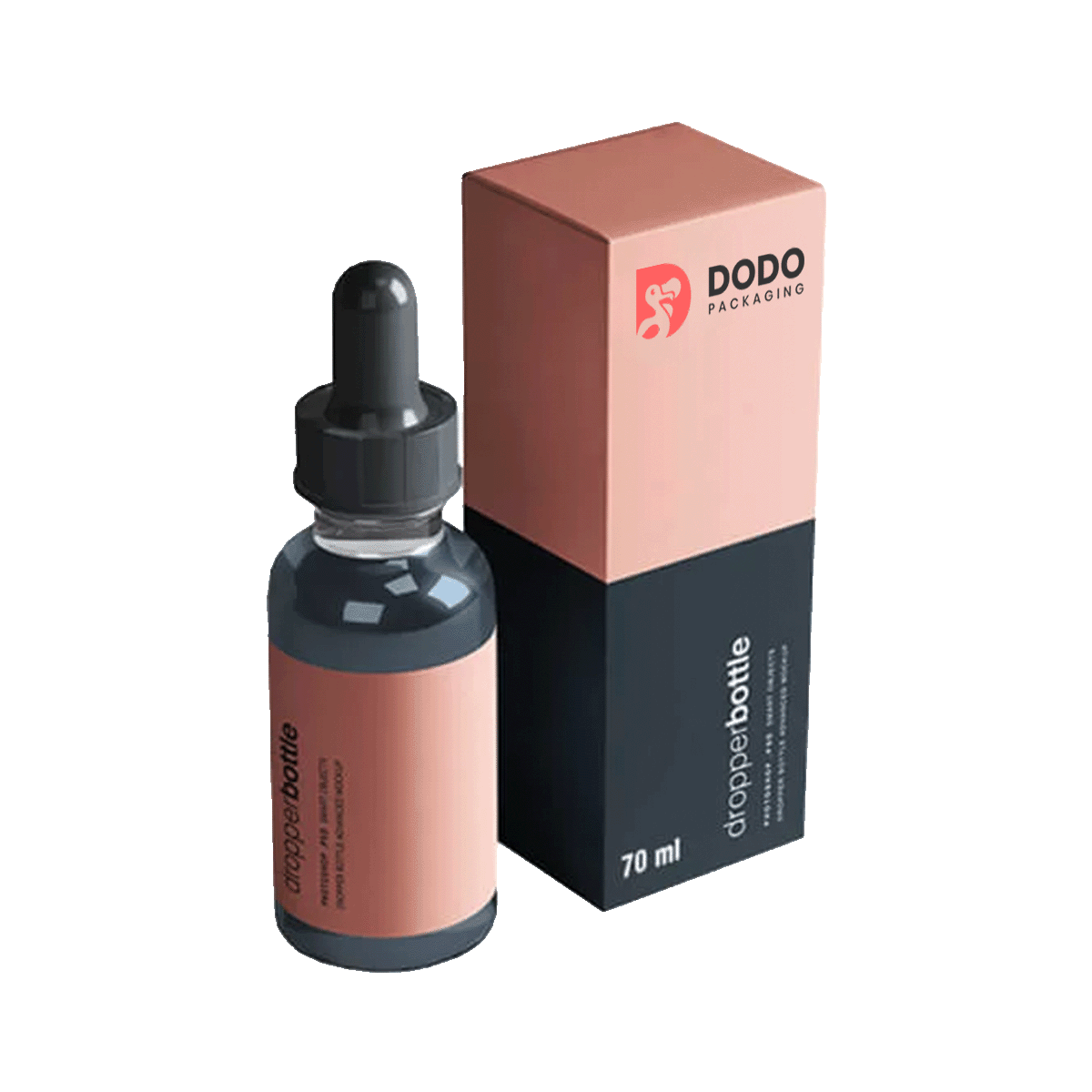

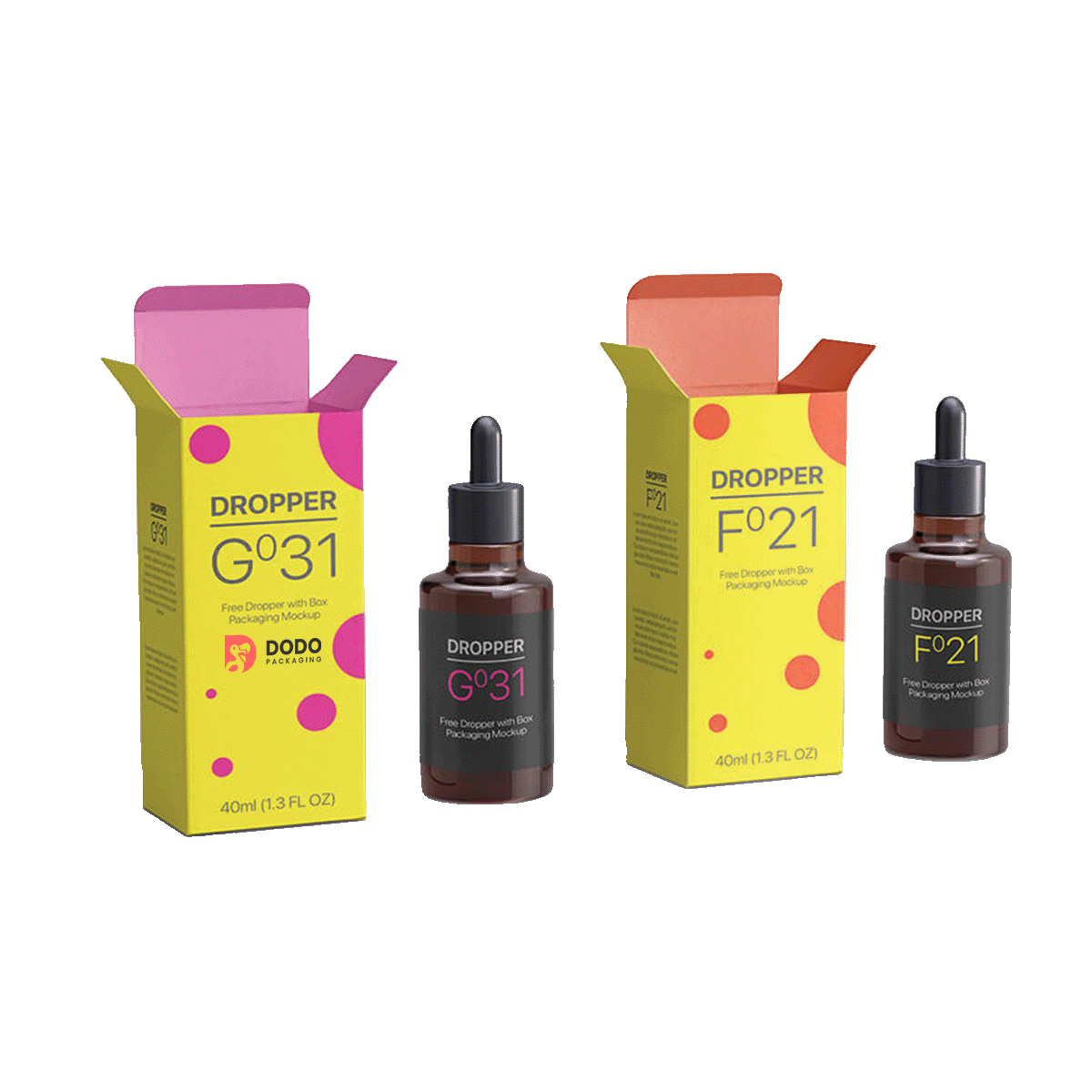

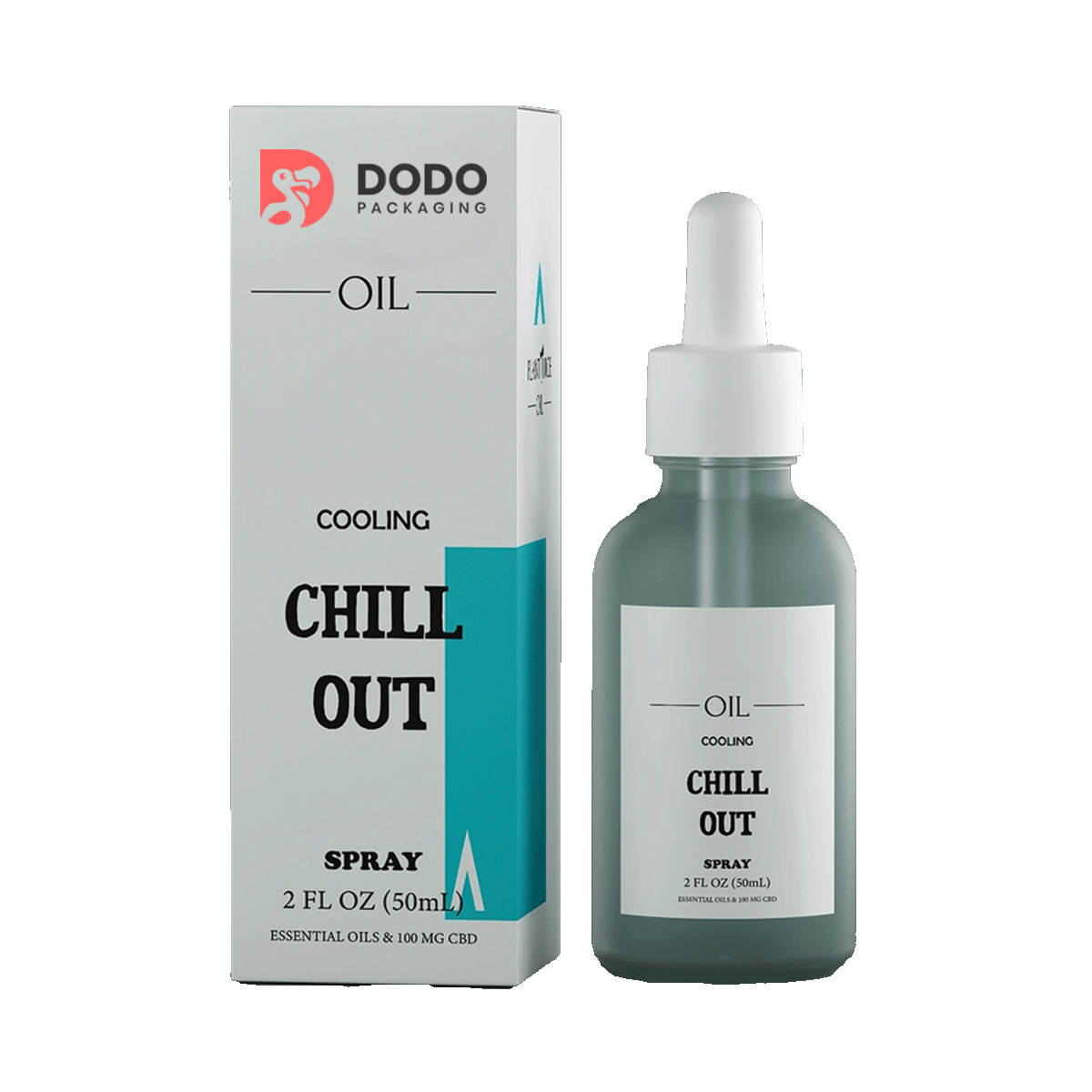

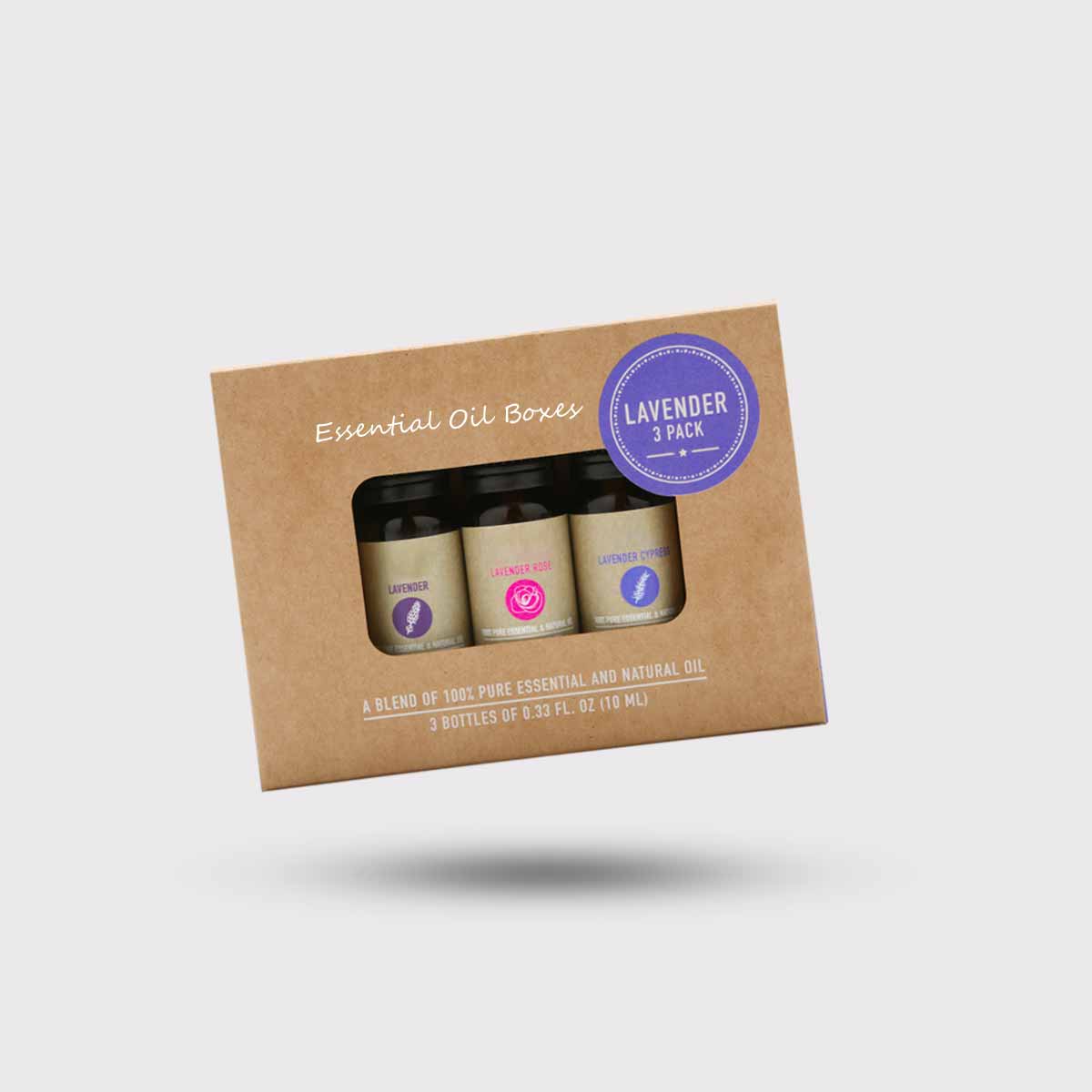

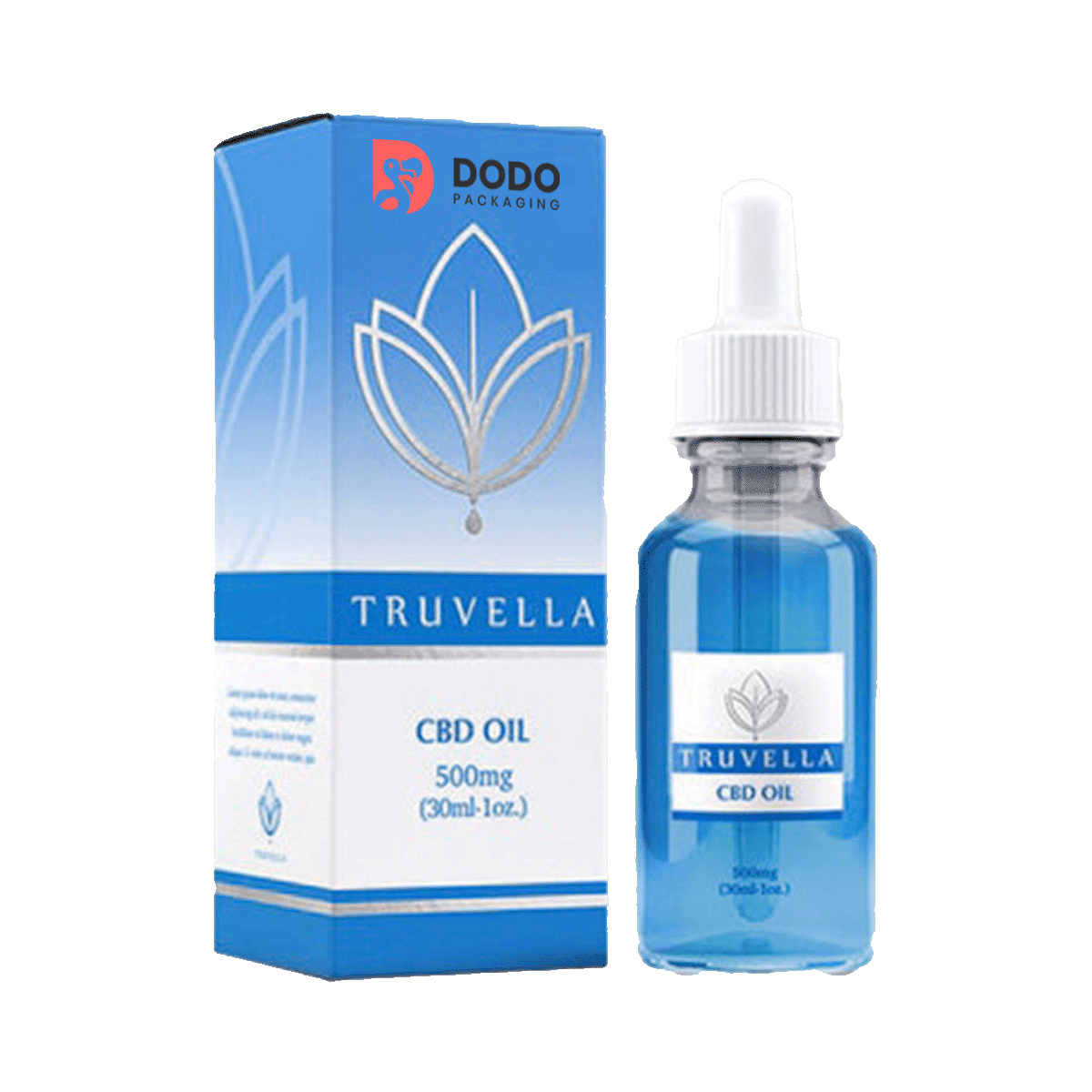

- Essential oil brands packaging 5ml to 100ml dropper bottles in straight tuck-end cartons with ingredient lists and safety panel copy

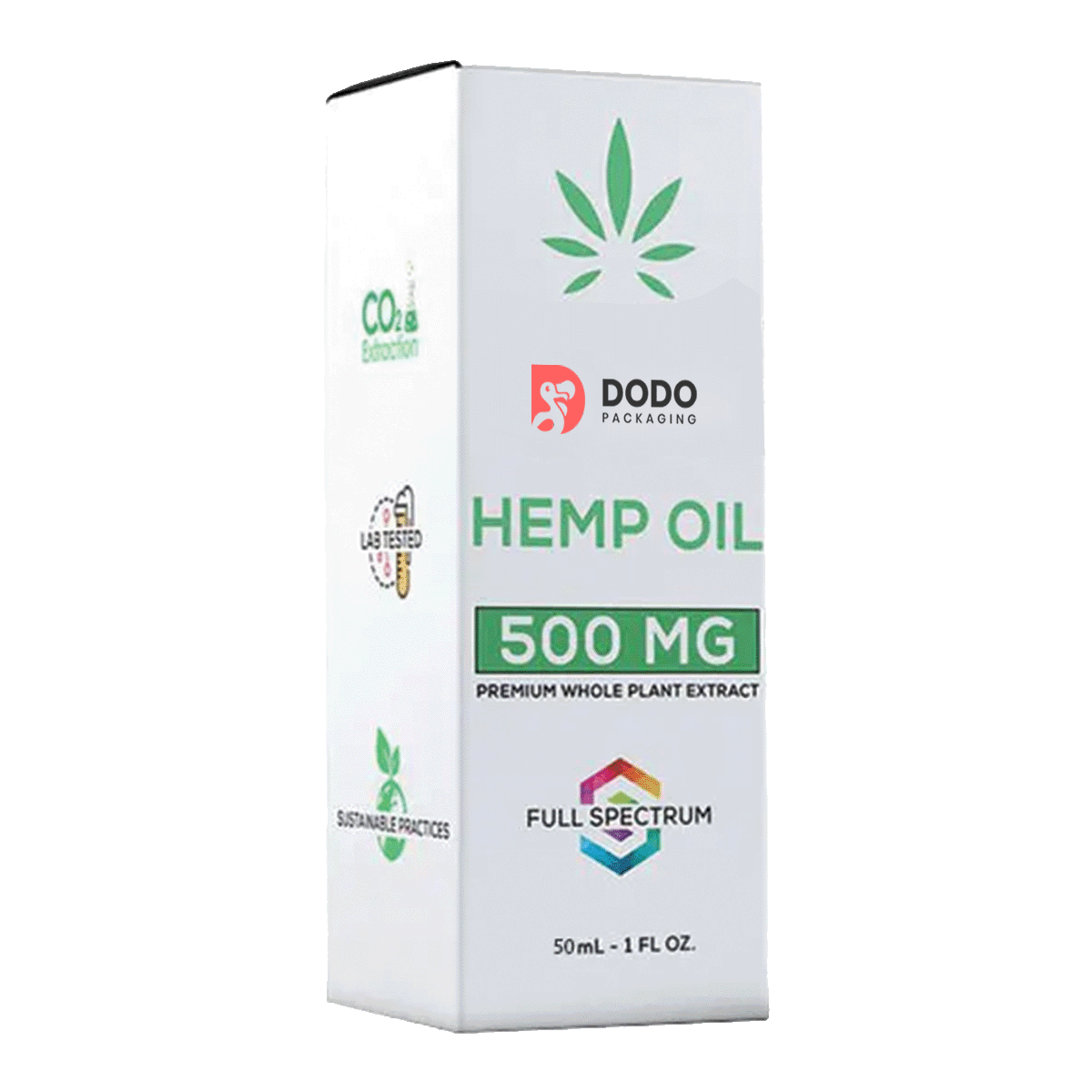

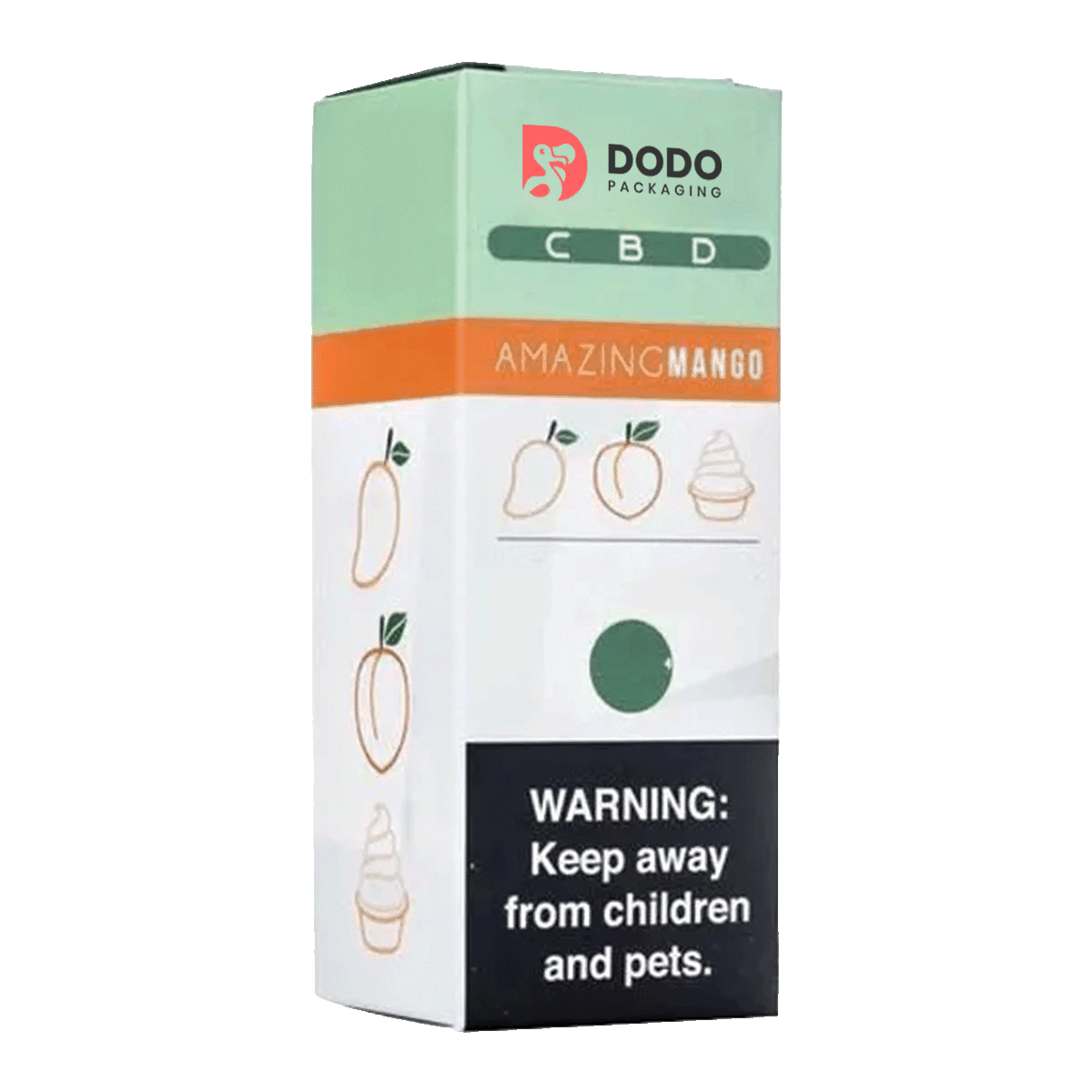

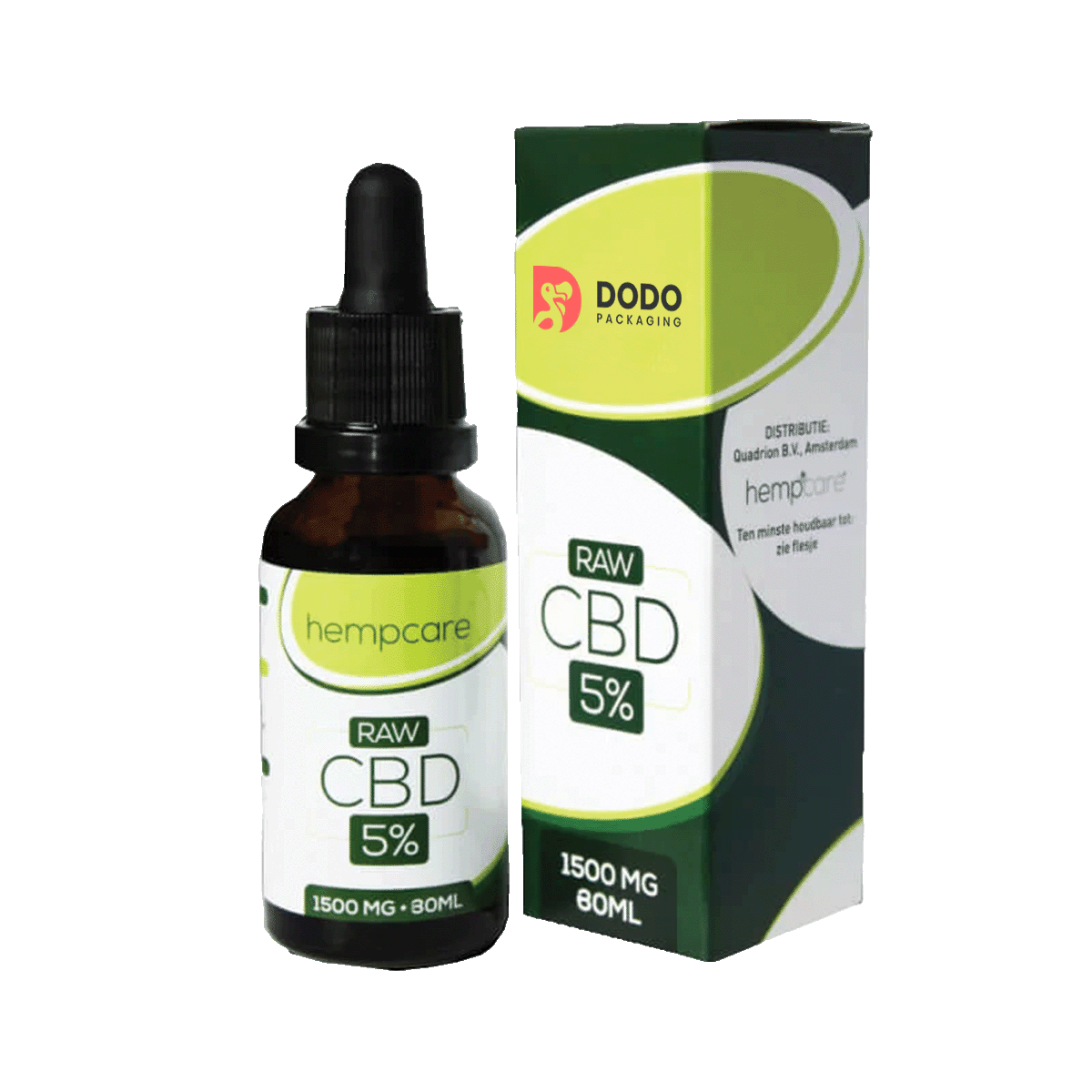

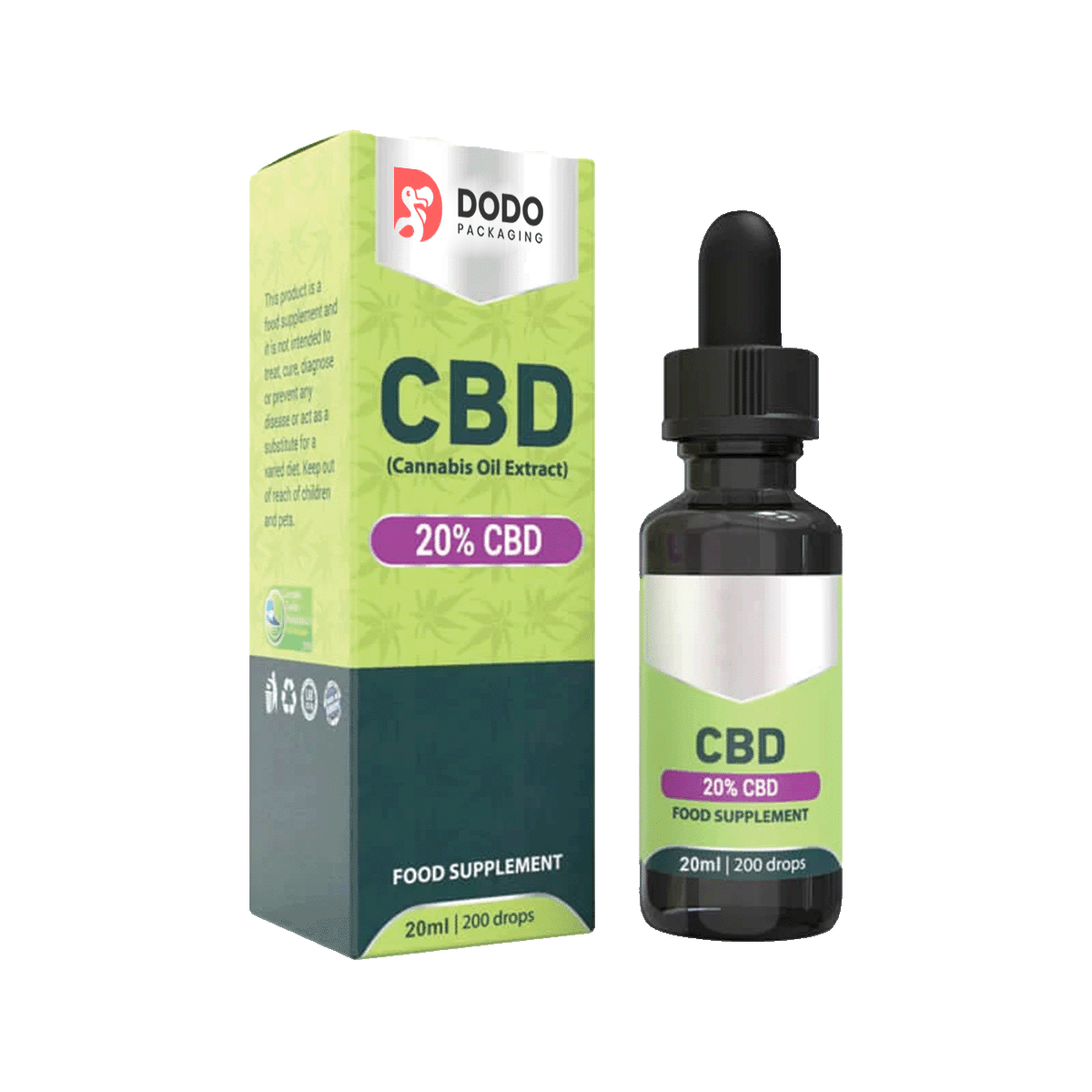

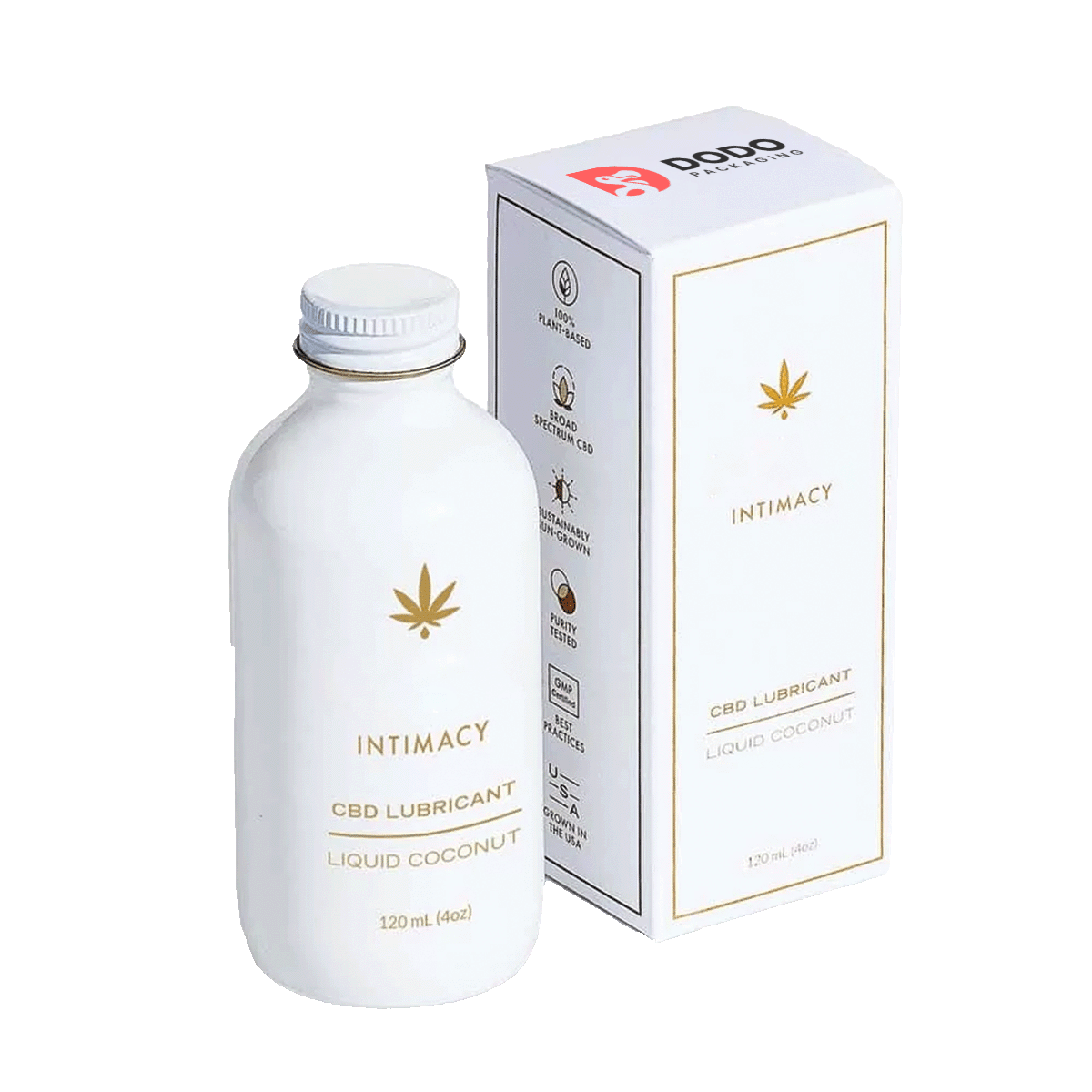

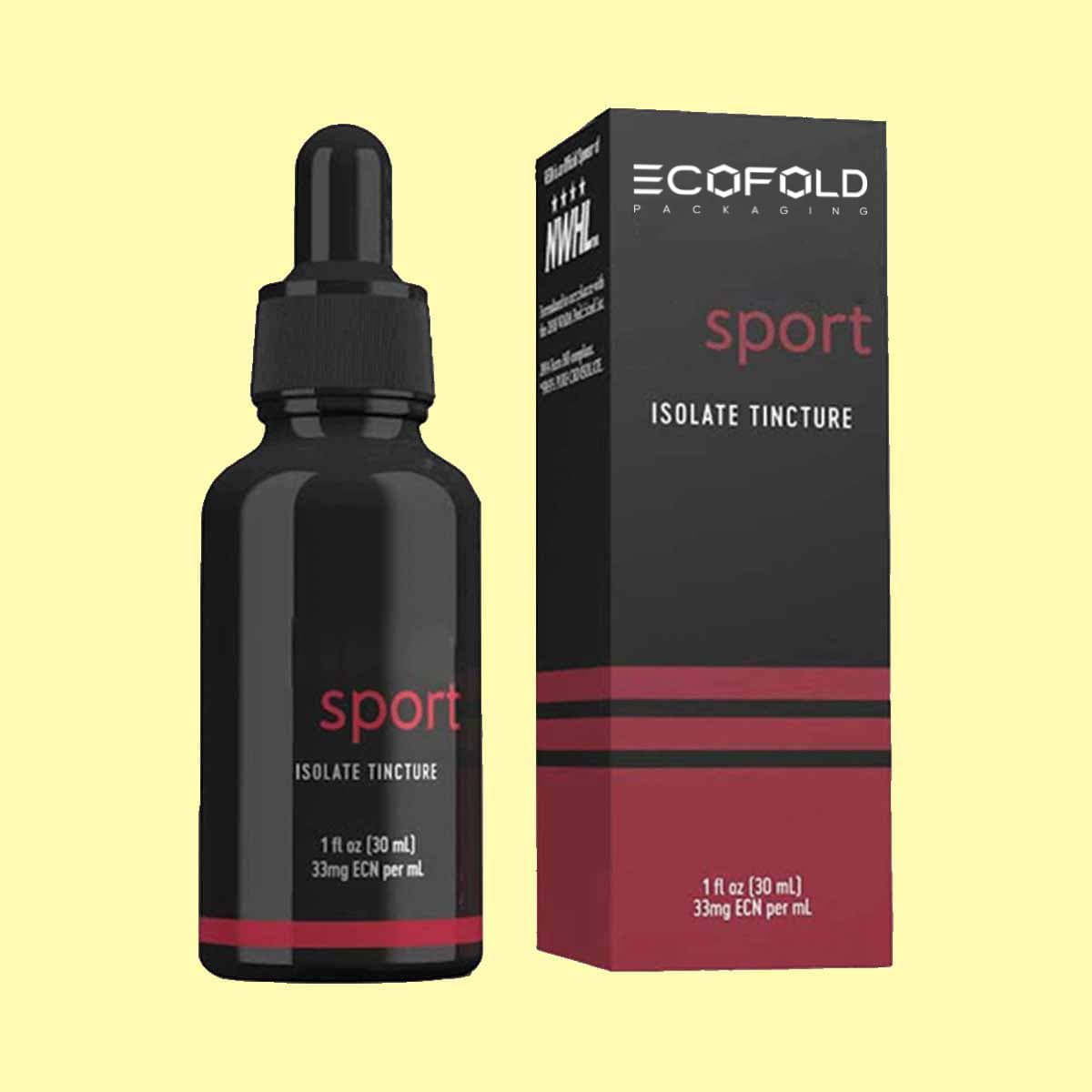

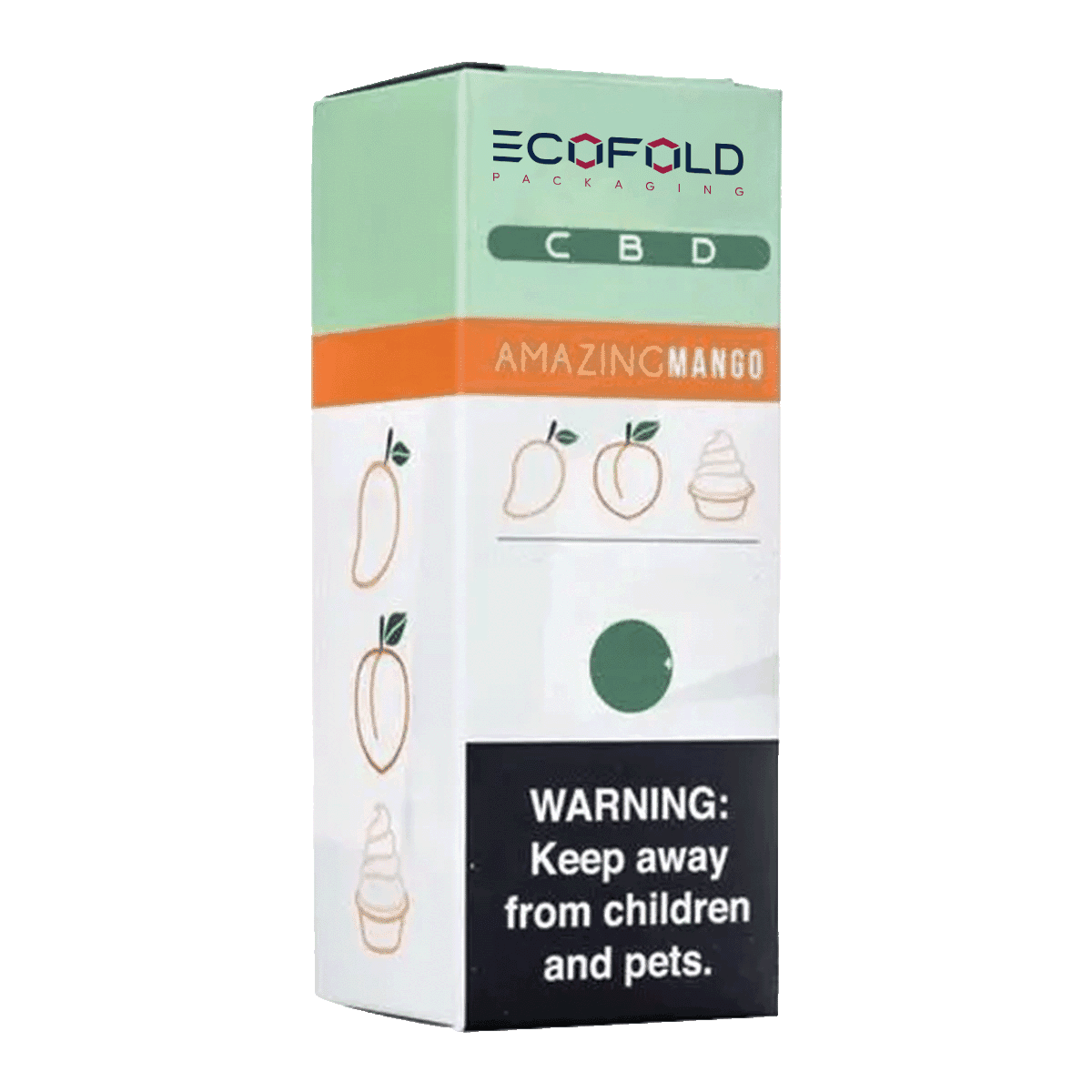

- CBD and tincture brands needing full compliance panel coverage on every box. Our custom CBD boxes range covers product-specific packaging builds for that category

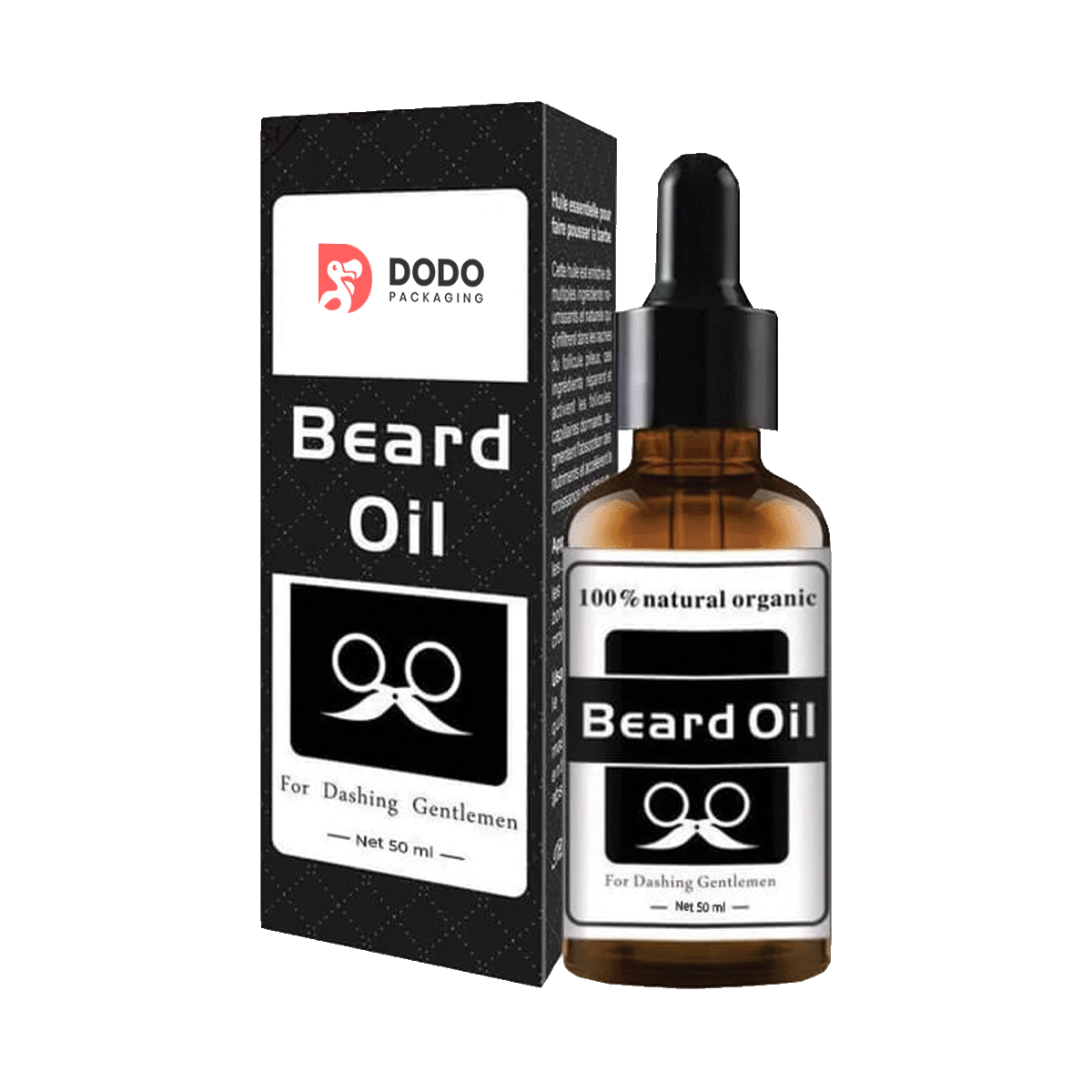

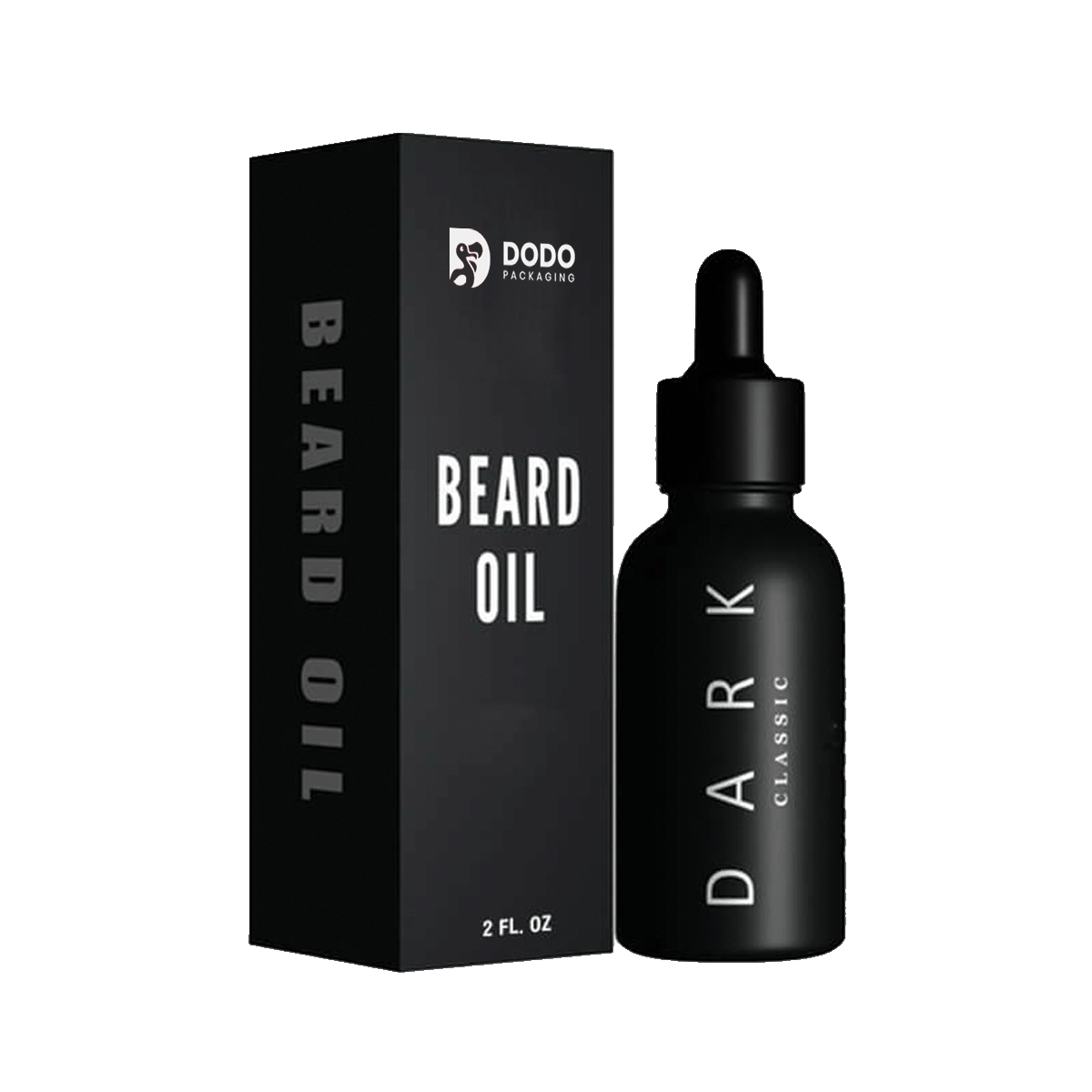

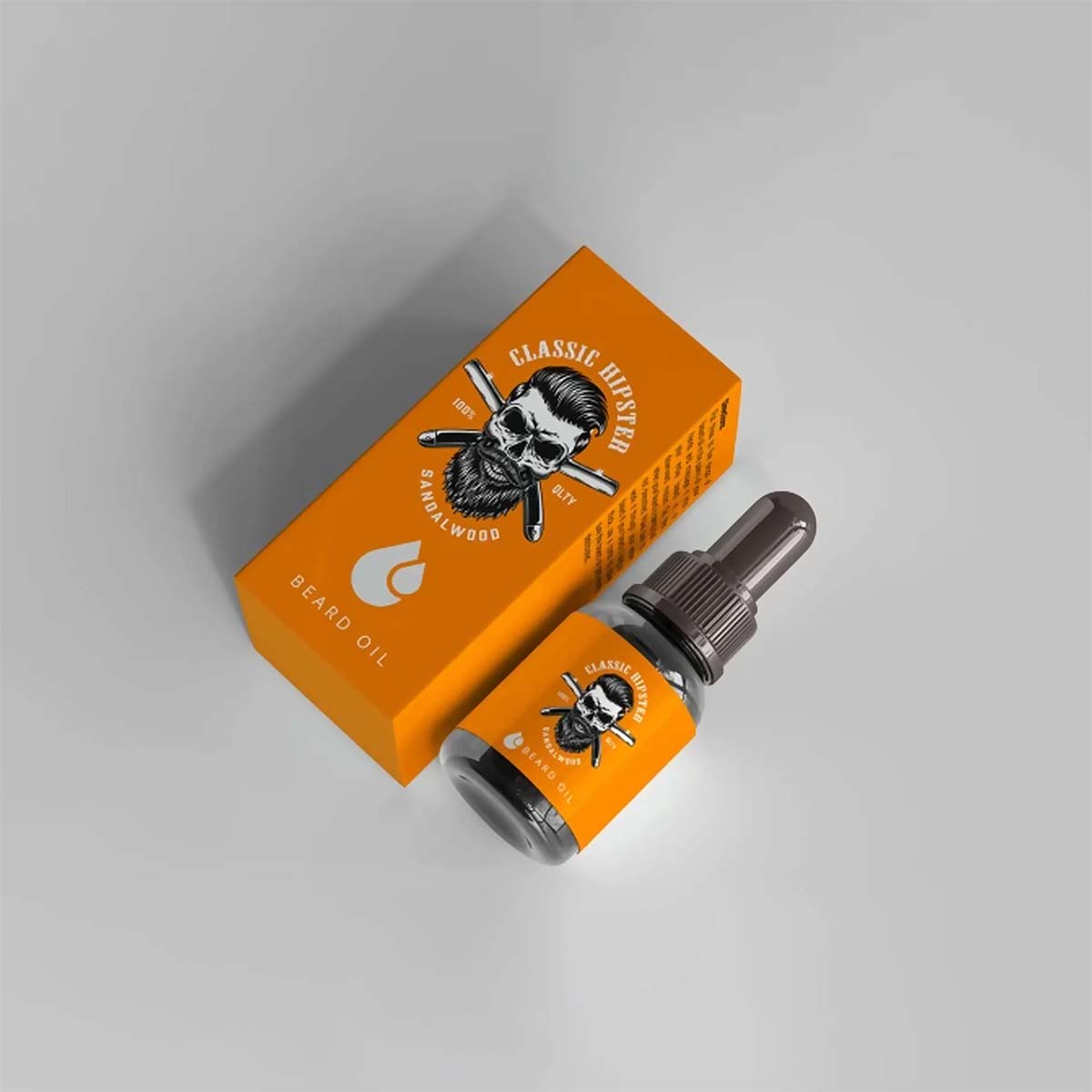

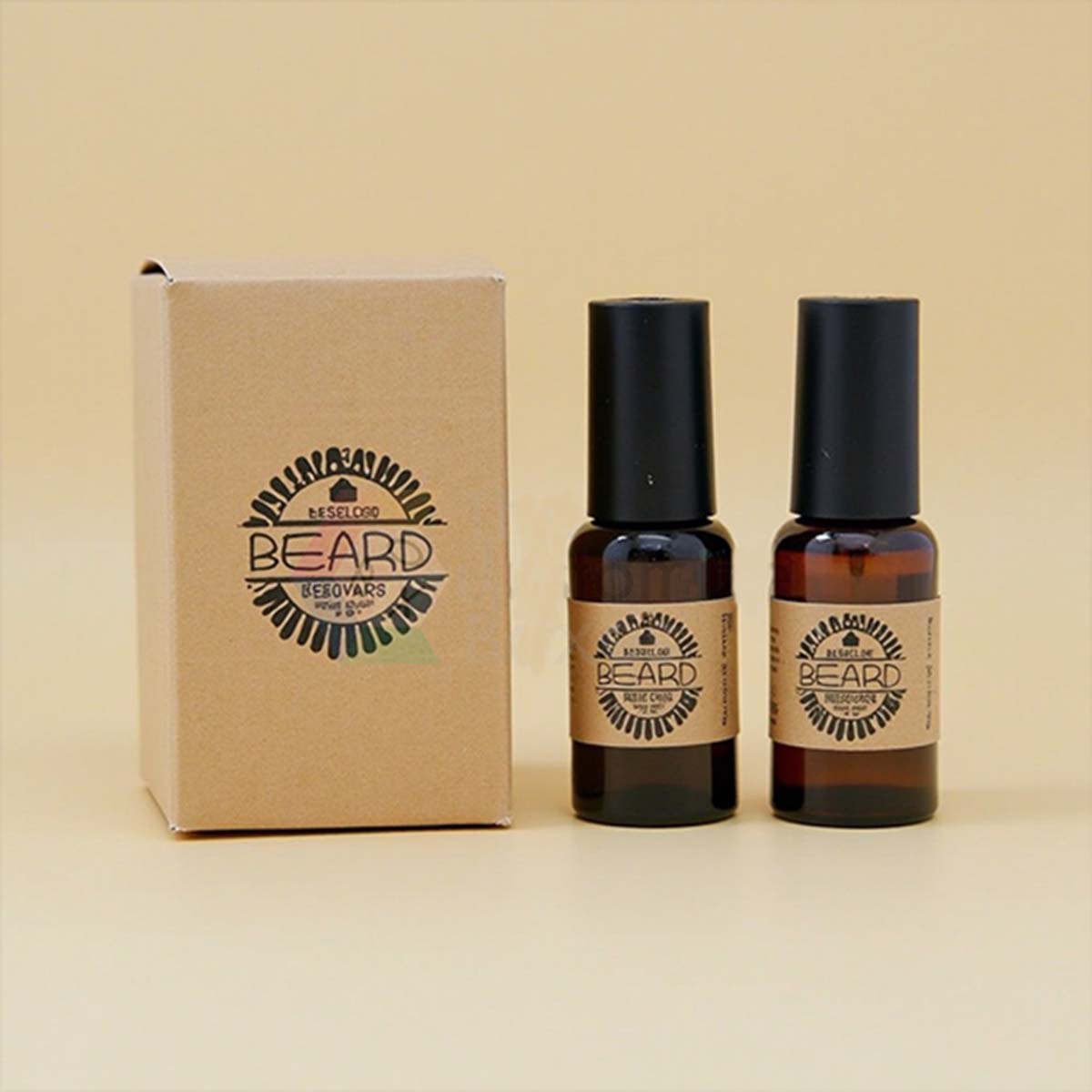

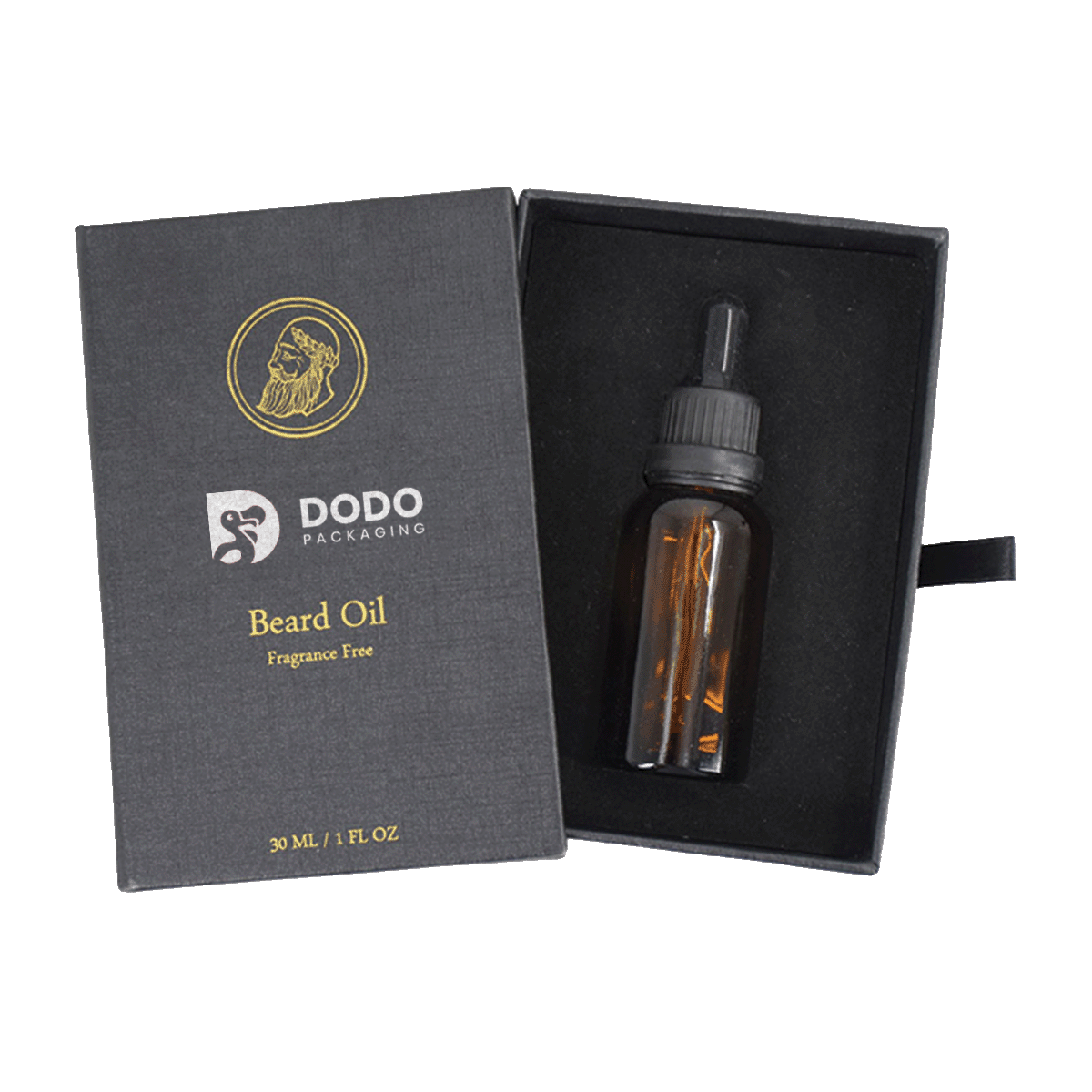

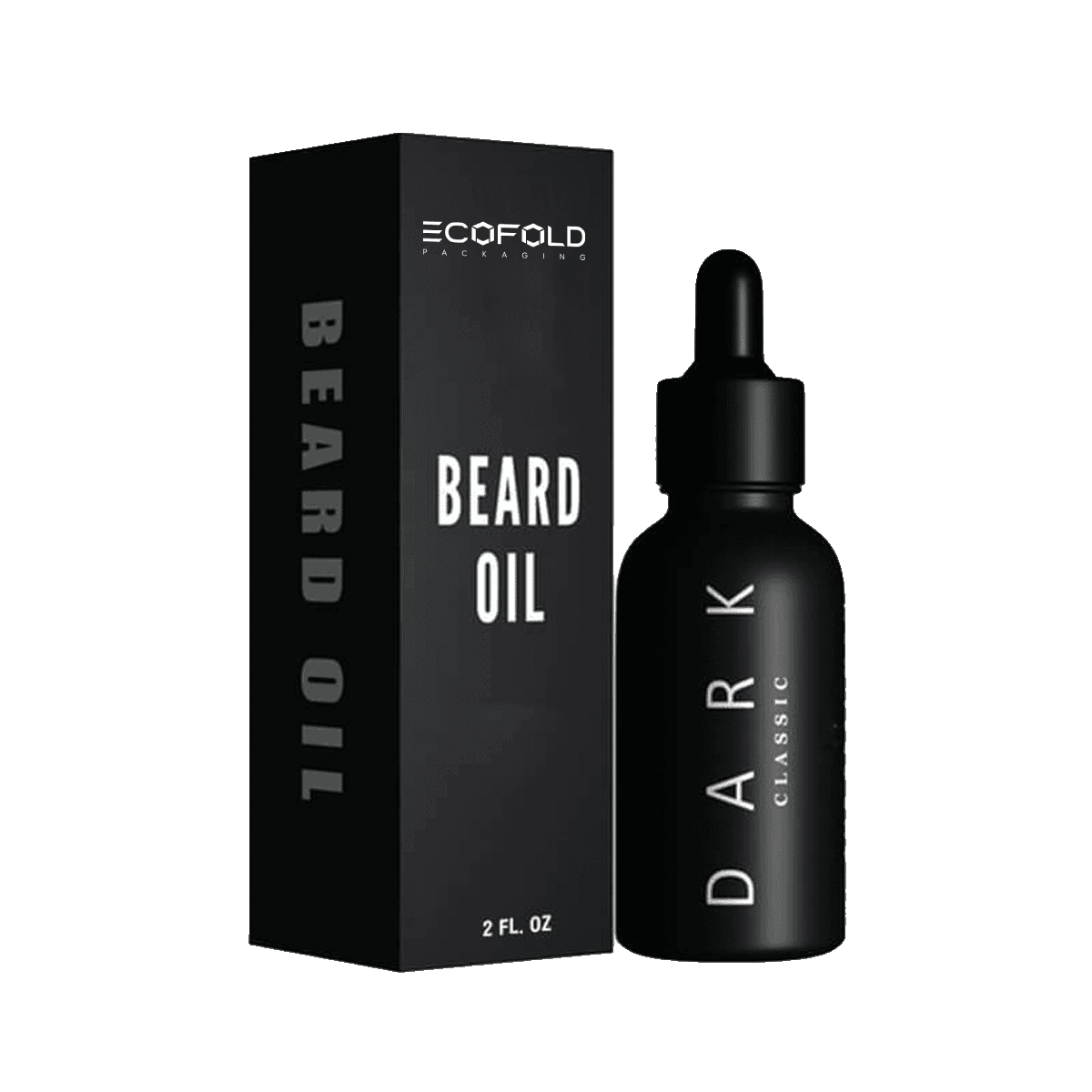

- Beard oil and men's grooming labels packing 30ml to 60ml dropper builds with brand print and ingredient panels

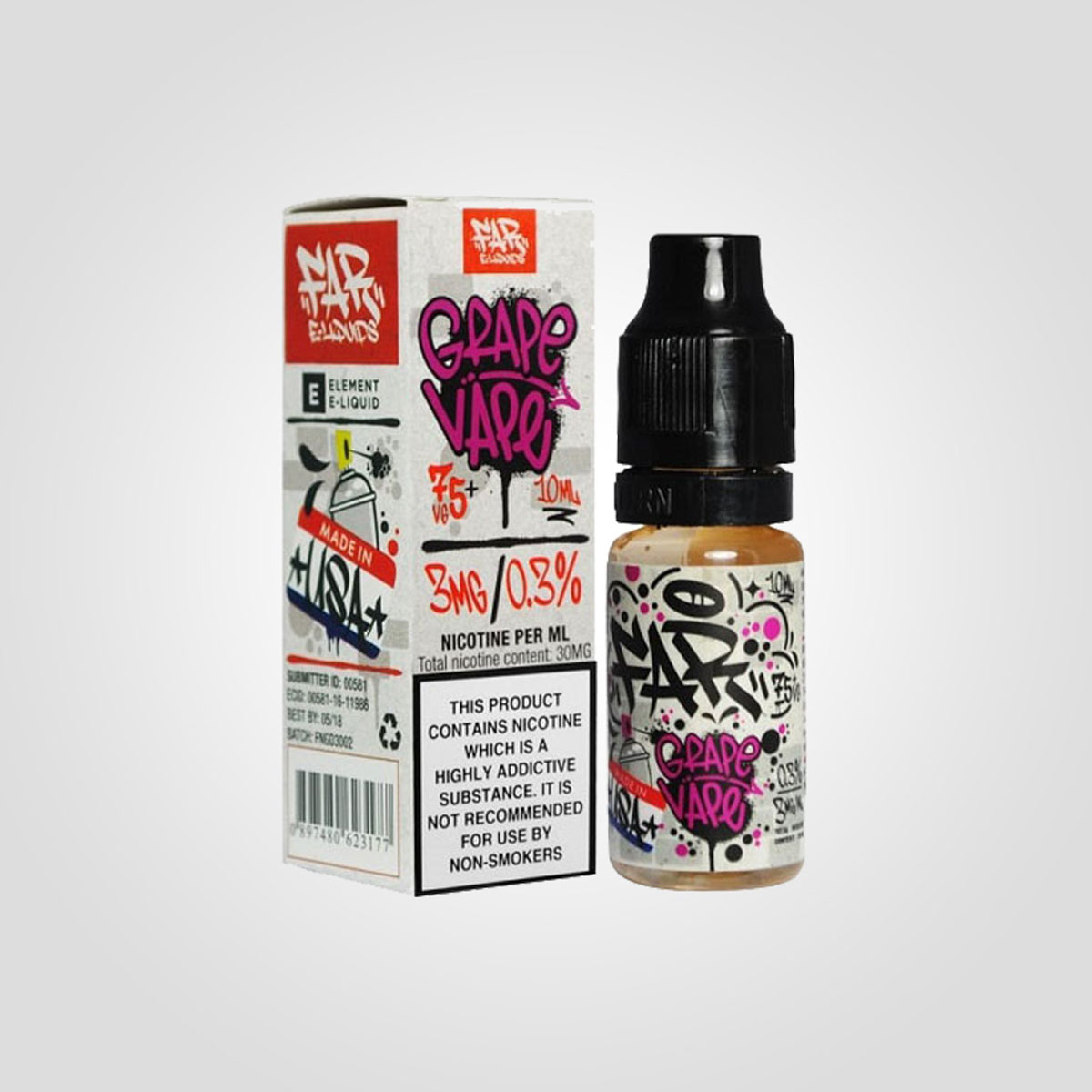

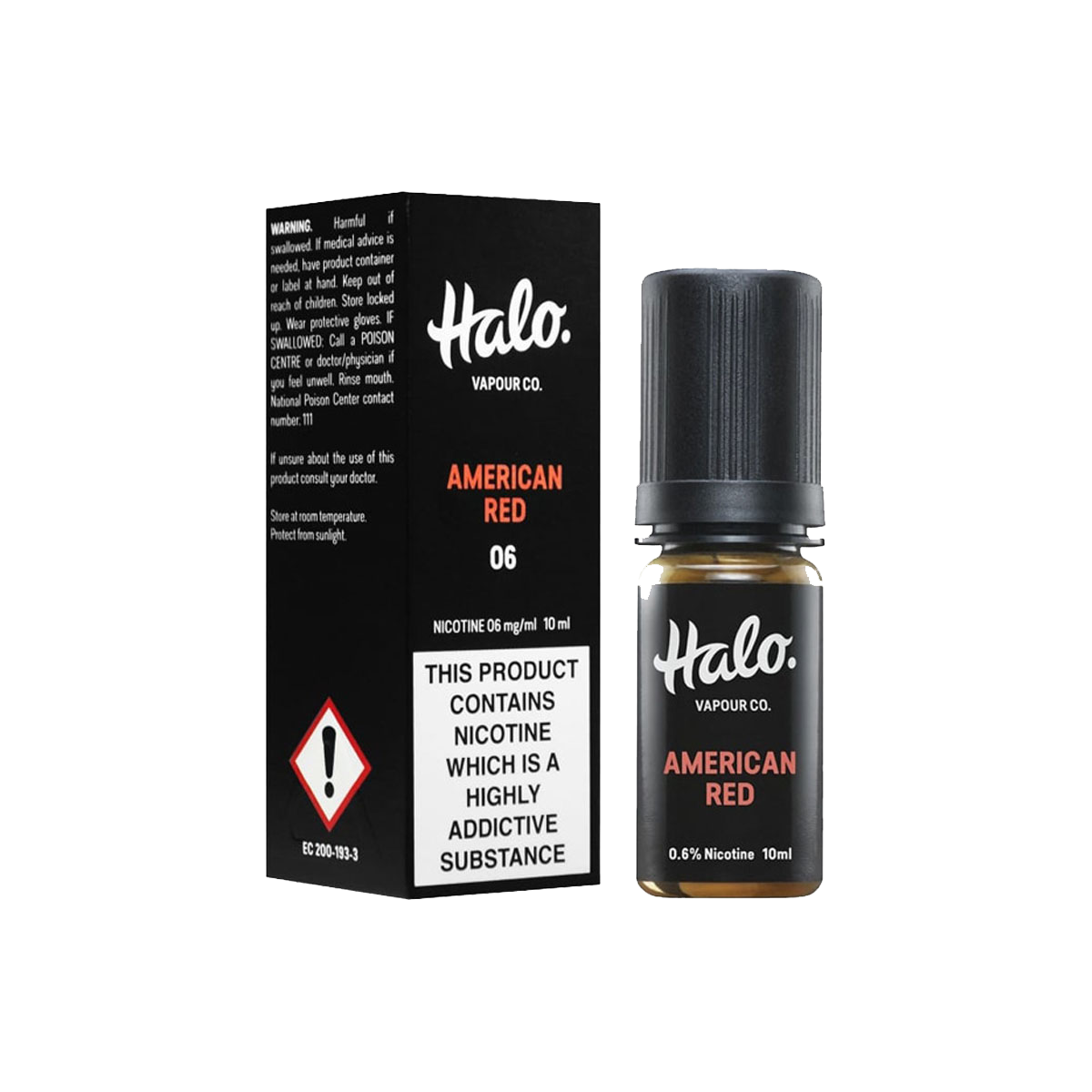

- Vape and e-liquid brands printing TPD-compliant cartons with nicotine warnings, batch numbers, and child-safety text
- Haircare and beauty brands packaging spray bottles, serums, and scalp treatments. Our custom cosmetic boxes range also covers broader cosmetic product-level packaging
- Wellness and supplement brands packing tincture drops, herbal oils, and liquid vitamins in shelf-ready cartons
- Private label brands that manufacture for third parties and need clean cartons with logo and product name
Why Brands Order From EcoFold
- MOQ starts at 100 units with bottle boxes wholesale pricing tiered by quantity
- Custom dimensions for every bottle size, height, and closure type
- 14pt to 24pt SBS, kraft, and FSC-certified board options on most styles
- Offset, digital, and Pantone print with foil stamp, matte, gloss, and soft-touch finish options
- 8 to 10 business day turnaround after artwork approval
- No die or plate charges, with clear pricing before production starts
- Ships to businesses across the USA
